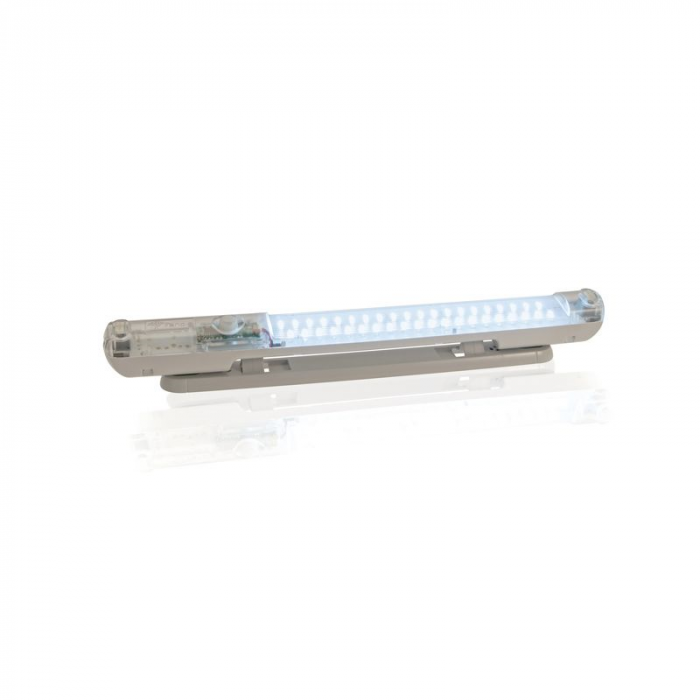

5 WATT LED PANEL LAMP + PUSHBUTTON SWITCH
Panel lights from Fandis FLL series:
- It is imperative that operators have adequate lighting during switchboard maintenance and inspections so they can see the components inside the panel properly.
- LED technology offers electrical cabinets an efficient lighting solution with a notably low power consumption.
- The lamp's slimline design ensures safety and increases installation adaptability, making it perfect for use in confined locations.
Features:
- Lamp revolves to a maximum of 40° in six distinct locations on the base.
- 120° circle, delayed auto-off, and absence of detection.
- Easy placing on metallic surfaces with magnetic fastening (optional magnet set).
- A mounted switch or a version with a PIR sensor that senses motion inside is used for switching.
- Push-in cage clamp terminals with integrated release buttons are used for termination on both sides.
Specifications:
- SERIES: FLL series
- POWER (W): 5
- DESCRIPTION: LED panel lamp with pushbutton switch
- OPERATING VOLTAGE: 110/230 VAC
- OPERATING TEMPERATURE: -30 to 60°C
- LIFETIME: 160.000h at 25°C
- LED: 290 Lm, 120°, daylight, colour temperature 6500K
- INFRARED SENSOR: No, push button switch.
- DIMENSIONS (MM): (H) 32 x (W) 356 x (D) 46
Brand | Fandis |
---|
