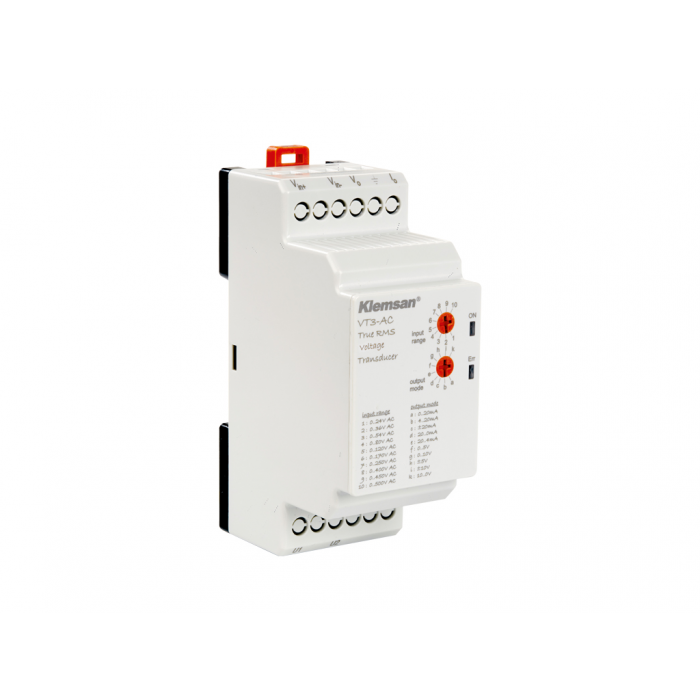

AC VOLTAGE TRANSDUCER 85-265VAC

ZAR 3,825.81
Out of stock
SKU
600101

Specifications

  • VT3-AC TRMS voltage transducer
  • Casing Width (mm): 36
  • Connections: Screw terminal
  • Isolation: 1.5 kVrms, 3-way
  • Test Voltage between Input-Output: 4 kV during 1 min.
  • Linearity: <0.2%
  • Response Time: 350ms
  • Ripple: <80mV
  • Accuracy: <0.2% (full scale, 25°C)
  • Temperature Coefficient: 150 ppm/°C
  • Protection class: IP20
  • Mounting type: Panel or rail

Technical Data:

Input Signal:

  • Frequency: 40-70 Hz
  • Surge Overload: <2Xu Input max. Range (5 pulses 1sec.)
  • Constant Overload: Max. 600V
  • Input Impedances: 240 kΩ

Analog Output:

  • Max. Current: 24 mA
  • Max. Voltage: 12V
  • Max. Load: 10 Ω (for voltage) / 600 Ω (for current)

Voltage:

  • AC: 85-265V
  • DC: 85-265V

Supply:

  • Frequency: 40-70Hz

Power Consumption:

  • DC: <1.5W
  • AC: <4VA

Ambient Conditions:

  • Operating Temperature: -20°C +60°C
  • Storing Temperature: 40°C +75°C
  • Relative Humidity (No Condensation): Maks. 95%
  • EMC-EMI: Radiated Emissionas Test, 61000-6-2/AC:2012, 61000-6-4:2007/A1:2011
More Information
Brand Klemsan
