Benchtop LCR Meters, UT622C: Handheld LCR Meters (100kHz, 0.1%)
SKU: UT622C
Out of stock
Availability: Out of Stock
Short Description

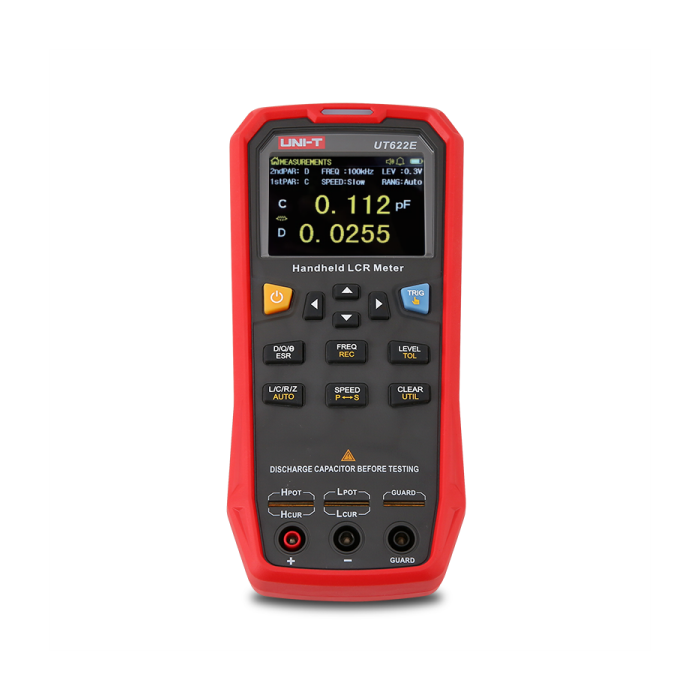

- The UT622C Handheld LCR Meter is a portable, high-accuracy component tester with a 2.8-inch TFT LCD, 5-digit display, and a measuring rate of up to 20 readings per second.
- It has test frequencies ranging from 100 Hz to 100 kHz with adjustable test signal levels of 0.1 V, 0.3 V, and 1 V.
- The meter has automatic LCR identification, numerous measurement parameters, tolerance sorting, and recording capabilities, making it ideal for laboratory testing, production-line inspection, and electronic maintenance.
Features:
- Maximum test frequency of 100 kHz.
- Basic accuracy of 0.1%.
- 5-digit display.
- Maximum test rate of 20 readings/s.
- Measures:
- Inductance (L).
- Capacitance (C).
- Resistance (R).
- Impedance (Z).
- ESR.
- Dissipation factor (D).
- Quality factor (Q).
- Phase angle (θ).
- Auto LCR component identification.
- Test frequencies: 100 Hz, 120 Hz, 1 kHz, 10 kHz and 100 kHz.
- Selectable test signal levels: 0.1 V, 0.3 V and 1 V.
- 100 Ω output impedance.
- Three-terminal test ports.
- Five-terminal end-face test ports.
- Supports Kelvin test lead expansion.
- Fast, medium and slow measurement speeds.
- Auto and hold ranging.
- Series and parallel equivalent circuit modes.
- Open-circuit and short-circuit correction.
- Tolerance mode for component sorting.
- Tolerance range of 1%–20%.
- PASS/FAIL comparison with LED indication.
- Recording mode for average, maximum, minimum and number of readings.
- Mini-USB connectivity.
- Rechargeable lithium-polymer battery.
- 2.8-inch TFT LCD display.
- Dual power supply: rechargeable battery or USB power adapter.
Specifications:
- Product Type: Handheld LCR Meter.
- Maximum Test Frequency: 100 kHz.
- Basic Accuracy: 0.1%.
- Display Count: 5-digit.
- Maximum Test Rate: 20 readings/s.
- Inductance (L): 0.001 µH–9999.9 H.
- Capacitance (C): 0.001 pF–99.999 mF.
- Impedance / Resistance (Z/R): 0.0001 Ω–99.999 MΩ.
- ESR: 0.01 m Ω–999.99 Ω.
- Dissipation Factor (D): 0.0001–9.9999.
- Quality Factor (Q): 0.0001–99999.
- Phase Angle (θ): -179.9° to 179.9°.
- Test Frequencies: 100 Hz / 120 Hz / 1 kHz / 10 kHz / 100 kHz.
- Test Signal Levels: 0.1 V / 0.3 V / 1 V.
- Output Impedance: 100 Ω.
- Primary Parameters: L / C / R / Z.
- Secondary Parameters: D / Q / θ / ESR.
- Auto LCR Identification: Yes.
- Test Ports: 3-terminal / 5-terminal.
- Test Speeds: Fast / Medium / Slow.
- Fast Test Rate: 20 readings/s.
- Medium Test Rate: 5 readings/s.
- Slow Test Rate: 2 readings/s.
- Ranging: Auto / Hold.
- Equivalent Circuit: Series / Parallel.
- Open/Short Correction: Yes.
- Tolerance Range: 1%–20%.
- PASS/FAIL Sorting: Yes.
- Recording Mode: Average / Maximum / Minimum / Number of readings.
- Connectivity: Mini-USB.
- Display: 2.8-inch TFT LCD, 320 × 240 pixels.
- Battery: 3.7 V, 1800 mAh rechargeable lithium-polymer.
- DCR Measurement: No.
