Benchtop LCR Meters, UT622E: Handheld LCR Meters (100kHz, 0.1%, DCR)
SKU: UT622E
Out of stock
Availability: Out of Stock
Short Description

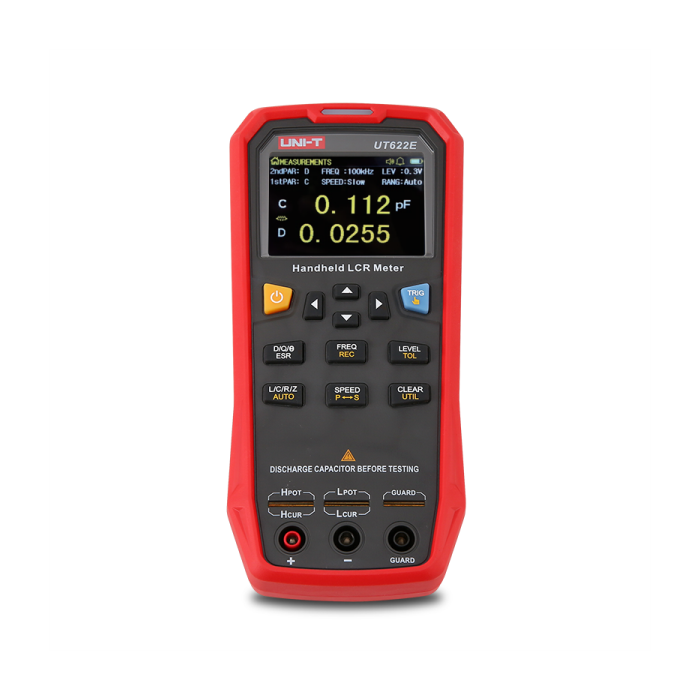

- The UT622E Handheld LCR Meter is a high-precision component tester for measuring and screening inductors, capacitors, and resistors in laboratories, production lines, maintenance areas, and electronic testing applications.
- It supports test frequencies of up to 100 kHz and includes DCR measurement, which allows users to determine the direct-current resistance of electrical components like coils and transformers.
- The instrument includes a 2.8-inch TFT LCD, automatic LCR identification, tolerance sorting, recording capabilities, and Mini-USB interface.
Features:
- Maximum test frequency of 100 kHz.
- Basic accuracy of 0.1%.
- 5-digit display.
- Maximum measurement rate of 20 readings/s.
- DCR (Direct Current Resistance) measurement.
- Measures:
- Inductance (L).
- Capacitance (C).
- Resistance (R).
- Impedance (Z).
- ESR.
- Dissipation factor (D).
- Quality factor (Q).
- Phase angle (θ).
- Direct-current resistance (DCR).
- Auto LCR component identification.
- Test frequencies of 100 Hz, 120 Hz, 1 kHz, 10 kHz and 100 kHz.
- Selectable test signal levels of 0.1 V, 0.3 V and 1 V.
- 100 Ω output impedance.
- Three-terminal and five-terminal test ports.
- Supports Kelvin test lead expansion.
- Fast, medium and slow measurement speeds.
- Automatic and hold ranging.
- Series and parallel equivalent circuit modes.
- Open-circuit and short-circuit correction.
- Tolerance mode for component sorting.
- Tolerance range of 1%–20%.
- PASS/FAIL comparison and LED indication.
- Recording mode for average, maximum, minimum and number of readings.
- Mini-USB connectivity.
- Rechargeable lithium-polymer battery.
- 2.8-inch TFT LCD.
- USB power adapter support.
Specifications:
- Product Type: Handheld LCR Meter.
- Maximum Test Frequency: 100 kHz.
- Basic Accuracy: 0.1%.
- Display Count: 5-digit.
- Maximum Test Rate: 20 readings/s.
- DCR Measurement: Yes.
- Inductance (L): 0.001 µH–9999.9 H.
- Capacitance (C): 0.001 pF–99.999 mF.
- Impedance / Resistance (Z/R): 0.0001 Ω–99.999 MΩ.
- ESR: 0.01 mΩ–999.99 Ω.
- Dissipation Factor (D): 0.0001–9.9999.
- Quality Factor (Q): 0.0001–99999.
- Phase Angle (θ): -179.9° to 179.9°.
- Test Frequencies: 100 Hz / 120 Hz / 1 kHz / 10 kHz / 100 kHz.
- Test Signal Levels: 0.1 V / 0.3 V / 1 V.
- Output Impedance: 100 Ω.
- Primary Parameters: L / C / R / Z.
- Secondary Parameters: D / Q / θ / ESR.
- Auto LCR Identification: Yes.
- Test Ports: 3-terminal / 5-terminal.
- Kelvin Test Lead Expansion: Yes.
- Test Speeds: Fast / Medium / Slow.
- Fast Test Rate: 20 readings/s.
- Medium Test Rate: 5 readings/s.
- Slow Test Rate: 2 readings/s.
- Ranging: Auto / Hold.
- Equivalent Circuit: Series / Parallel.
- Open/Short Correction: Yes.
- Tolerance Range: 1%–20%.
- PASS/FAIL Sorting: Yes.
- Recording Mode: Average / Maximum / Minimum / Number of readings.
- Connectivity: Mini-USB.
- Display: 2.8-inch TFT LCD, 320 × 240 pixels.
- Battery: 3.7 V, 1800 mAh rechargeable lithium-polymer.
- Power Supply: Lithium-polymer battery / USB power adapter.
