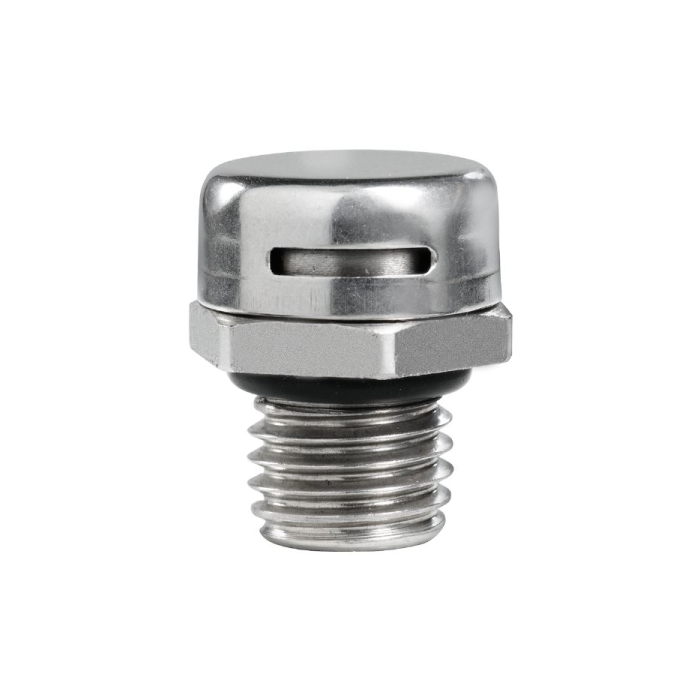

      Compensating element, straight, M 12, 10 mm, Stainless steel (303)

      SKU: 1868550000
      Out of stock

      Availability: Out of Stock

      Short Description

      Pricing available on request

      Description:

      • High-quality parts like the DAE (ventilation element) Compensating Element M 12 (1868550000) are made to guarantee efficient drainage and ventilation in electrical enclosures.
      • Stainless steel 1.4305 (303), used to create this compensating element, offers exceptional durability and corrosion resistance.
      • It is especially helpful in preserving ideal ventilation and avoiding moisture build-up, both of which are essential for the durability and dependability of electrical components.
      • Your electrical installations will be protected and function as intended with the DAE M 12, which is appropriate for a variety of industrial applications.
      1868550000
      Alternative image 1

      Specifications:

      • Component: Compensating element for ventilation and drainage.
      • Series: DAE.
      • Material: Stainless steel 1.4305 (303).
      • Thread Size: M 12.
      • Height: 10 mm.
      • Protection Class: IP66, IP68, IP69K.
      • Temperature Range: -40°C to +105°C.
      • Installation:
        • Designed for straight installation.
        • Suitable for bottom-side installation with vertical alignment.
        • Flow Rate: 0.4 l/min at 0.1 bar ΔP, up to 5.0 l/min at 1 bar ΔP.
      • Standards:
        • REACH conforms.
        • RoHS conforms.
