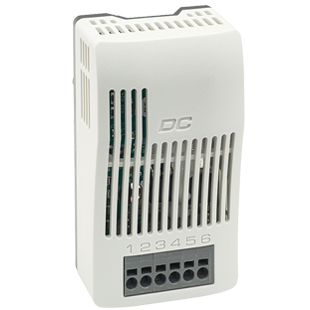

DCM 010 Switch Module, DC 15 A, -30 °C to +40 °C
SKU: 01010.0-00
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Pricing available on request
DCM 010 Panel Switch Module:
The switch module controls high-capacity DC-powered devices in control and switch cabinets.
An external potential-free contact, often known as a thermostat or hygrostat, that is connected between terminals 3 and 4 is used to control it.
It must be assured that the external contact can smoothly switch the needed signal current.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Type: Switch Module – DC Line.
Operating Voltage: 20 to 56V DC.
Switching Capacity: 15A @ 56V DC.
Operating Temperature Range: -40 to +40°C.
Protection Rating: IP20.
Connection: 6-pole terminal, stranded wire 1.5 mm² (AWG 16); max. 2.5 mm² (AWG 12).
Service Life: 100,000 cycles.
Control Contact – Signal Current: 3 mA at 20V DC / 4.5 mA at 24V DC / 14 mA at 48V DC / 17 mA at 56V DC.
Compliance: UL File No. E342261, VDE, EAC.
Dimensions: 93 x 53 x 44 mm.
Weight: Approx. 65 g.
Features:
High DC Switching Capacity.
Wide DC Voltage Range.
Simple Connection.
DIN Rail Mountable.
Plastic Casing According to UL94 V-0, Grey (Bicolour).
Suitable for Various Applications.
Vertical Fitting Position.
