DCF 010 Electronic Hygrostat, DC 15 A, -30 °C to +40 °C, NO
SKU: 01012.0-20
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Pricing available on request

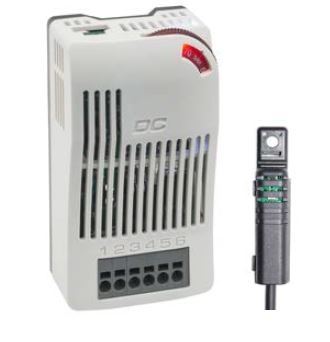

DCF 010 Panel Electronic Hygrostat:
The electronic hygrostat with integrated switch module is used in control and switch cabinets to control large DC-powered equipment.
Direct control of heaters, coolers, filter fans, or signal devices can be achieved by an internal electronic circuit.
The external sensor can be placed anywhere in the control cabinet to accurately monitor air humidity.
Moreover, this hygrostat comes in variants that use an external sensor to monitor temperature in addition to relative humidity.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Type: Electronic Hygrostat.
Humidity Measuring Range: 40% to 90% RH.
Output Configuration: Normally Open (NO).
Max. Operating Current: 15A.
Connection: Screw terminals.
Operating Temperature: -30°C to +40°C.
IP Rating: IP20.
Mounting: DIN rail mounting.
Mechanical Durability: 100,000 cycles.
Max. Operating Voltage: 56V DC.
Supply Voltage: 20-56V DC.
Dimensions: 3.7 x 2.1 x 1.7 inches.
Gross Weight: 163.1 g.
Features:
External Sensor: Includes an external sensor.
Humidity Resistance: Operates effectively at 40% to 90% relative humidity.
