DCF 010 Electronic Hygrostat, DC 11 A, 30 °C to +60 °C, NO
SKU: 01012.0-22
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Pricing available on request

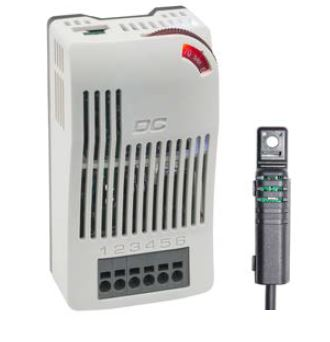

DCF 010 Panel Electronic Hygrostat:
The electronic hygrostat with integrated switch module is used in control and switch cabinets to control large DC-powered equipment.
Direct control of heaters, coolers, filter fans, or signal devices can be achieved by an internal electronic circuit.
The external sensor can be placed anywhere in the control cabinet to accurately monitor air humidity.
Moreover, this hygrostat comes in variants that use an external sensor to monitor temperature in addition to relative humidity.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Operating Voltage: 20 to 56 V DC.
Switching Capacity: 11 A DC.
Humidity Range: 40 to 90% RH.
Operating Temperature: -30 to +60°C.
Protection Type: IP20.
Dimensions: 93 x 53 x 44 mm.
Weight: ~120 g (including sensor).
Service Life: 100,000 cycles.
Connection: 6-pole terminal, stranded wire 1.5 mm² (AWG 16), max. 2.5 mm² (AWG 12).
Mounting: Clip for 35 mm DIN rail, EN 60715.
Features:
High DC Switching Capacity.
Adjustable Humidity.
Small Hysteresis.
Optical Operating Display (LED).
Integrated Switch Module.
Precise Measurement via External Sensor.
External Sensor Cable: 2 m with snap-in connector.
