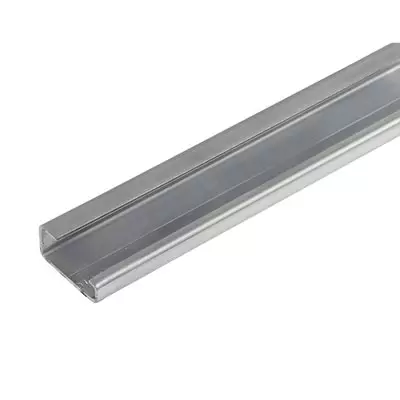

TS 32X15 2M/ST/ZN
SKU: 0122800000
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Pricing available on request
Steel DIN rails:
Steel DIN rails are the most widely used on the market.
Metal DIN rails provide the lowest short-circuit protection, comparable to stainless steel.
Buy currently uses Select Automation shop pricing and checkout.
Specifications weights and dimensions:
Depth: 15 mm.
Height: 33 mm.
Width: 2,000 mm.
Net weight: 360 g.
Mounting rail:
Installation advice: Direct mounting.
Length of terminal rail:
Maximum length: 2,000 mm.
Nominal length: 2,000 mm.
Minimum: 0 mm.
Material: Steel.
The mounting rail is not pre-punched.
The short circuit strength corresponds to E-Cu wire: 35 mm².
The short-term withstand current per second is 4.2 kA, according to IEC 60947-7-2.
Standards: DIN EN 60715.
The surface is galvanic zinc-plated and passivated.
Thickness: 1.5 mm.
