ETF 012 Electronic Hygrotherm, AC 100 – 240 V, 50/60 Hz (min. AC 90 V, max. AC 265 V)
SKU: 01230.0-00
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Pricing available on request

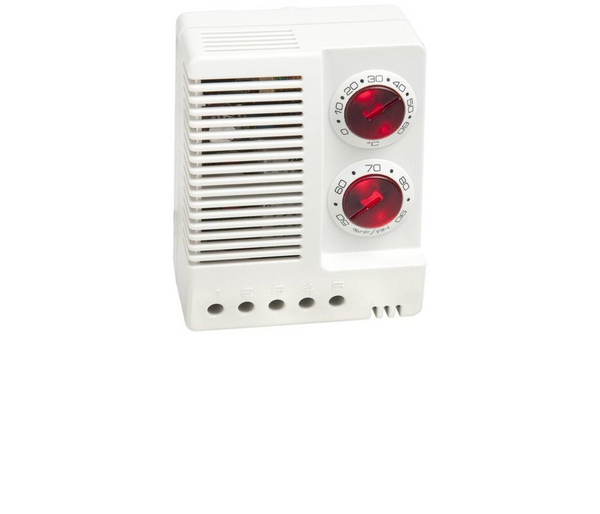

Electronic Hydrothermal Panel ETF 012:
The electronic hydrothermal monitors the ambient temperature and relative humidity in an enclosure using electric/electronic components and activates a heater (or, alternately, a fan) at any predetermined point, so preventing condensation in the enclosure.
Because of its wide voltage range, hydrothermal can be used anywhere in the world.
When the linked device is operating, the LED that is integrated inside the active controller's adjustment knob illuminates.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
External Dimensions:
External Height: 76.2 mm.
External Width: 60 mm.
External Depth: 43 mm.
Operating Voltage: 100-240V AC.
Operating Temperature Range: 0 to 60°C.
Humidity Measuring Range: 50 to 90% RH.
Switching Capacity: 250VAC, 10A.
Protection Rating: IP20.
Mechanical Durability: 100,000 cycles.
Connection: Screw terminals.
Compliance: RoHS Compliant, UL94V-0 Flammability rating.
Features:
Simultaneous Monitoring of Temperature and Humidity.
SPDT Output Configuration.
High Switching Capacity.
DIN Rail Mountable.
Efficient Temperature and Humidity Control.
Wide Voltage Range.
Compact Design.
