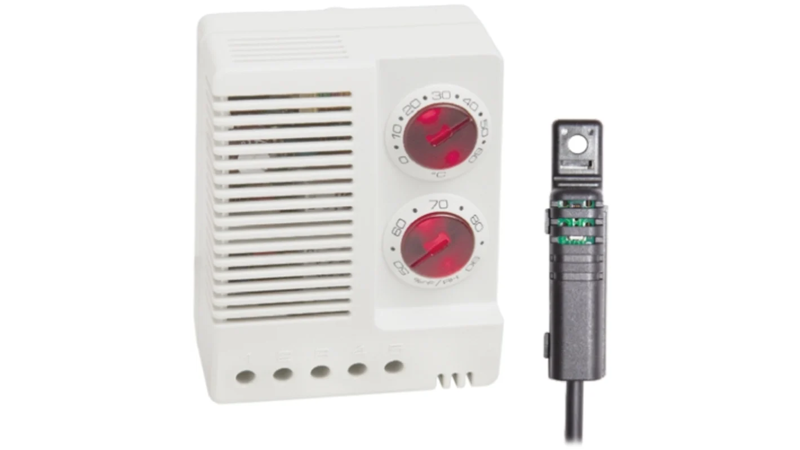

ETF 012 Electronic Hygrotherm with External Sensor, DC 24 – 48 V, 1 m Cable
SKU: 01231.1-00
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Pricing available on request
Electronic Hydrothermal Panel ETF 012:
The electronic hydrothermal monitors the ambient temperature and relative humidity in an enclosure using electric/electronic components and activates a heater (or, alternately, a fan) at any predetermined point, so preventing condensation in the enclosure.
Because of its wide voltage range, hydrothermal can be used anywhere in the world.
The external sensor can be positioned freely anywhere in the enclosure for precise measurements.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
External Dimensions:
External Height: 76.2 mm.
External Width: 60 mm.
External Depth: 43 mm.
Operating Voltage: 100-240V AC.
Operating Temperature Range: 0 to 60°C.
Humidity Measuring Range: 50 to 90% RH.
Switching Capacity: 10A resistive / 1.6A inductive @ 240V AC; 0.6A @ 60V DC.
Protection Rating: IP20.
Mechanical Durability: VDE: NO/NC > 15,000 cycles; UL: NO/NC > 30,000 cycles.
Connection: 5-pole terminal, clamping torque 0.5 Nm max.
Compliance: UL94V-0 Flammability rating, UL File No. E164102, VDE, EAC.
Features:
Simultaneous Monitoring of Temperature and Humidity.
SPDT Output Configuration.
High Switching Capacity.
DIN Rail Mountable.
Efficient Temperature and Humidity Control.
Wide Voltage Range.
Compact Design.
Integrated LED Indicators.
