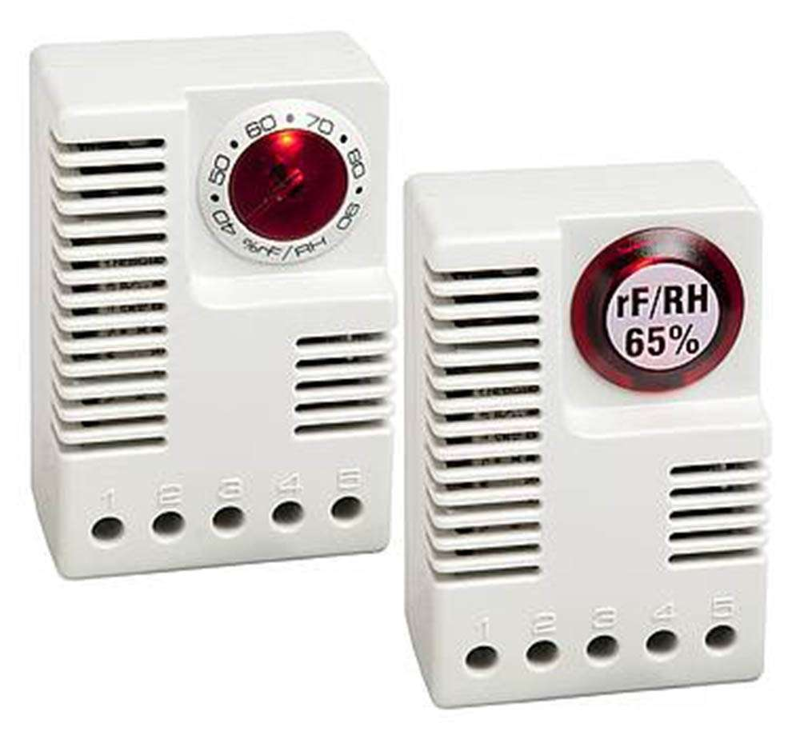

EFR 012 Electronic Hygrostat, AC 230 V, 50/60 Hz, 50 % RH pre-set Setting Range
SKU: 01246.0-01
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Pricing available on request
EFR 012 Panel Electronic Hygrostat:
The electronic hygrostat detects relative humidity in an enclosure using electric/electronic components and activates a heater at the predetermined point, thereby preventing condensation in the enclosure.
When the attached heater is turned on, the LED embedded into the adjustment knob lights up.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Type: Electronic Hygrostat EFR 012.
Voltage: 230 VAC.
Humidity Measuring Range: 50% RH (pre-set).
Contact Type: SPDT / Change-over.
Max. Inrush Current: 16 A.
Switching Difference: 5% RH (±3% RH tolerance).
Service Life: > 50,000 cycles.
Max. Switching Capacity: 5 A at 250 VAC.
Connection: Screw terminals.
Housing: Plastic, UL 94V-0, light grey.
Mounting: Clip for 35 mm DIN rail (EN 60715).
Mounting Position: Vertical.
Operating Temperature: 0 to 60 ºC.
Storage Temperature: -20 to +70 ºC.
Dimensions: 64.5 x 42 x 38 mm.
Weight: Approx. 77.4 g.
Protection Type: IP20.
Features:
Efficient Humidity Control: Helps prevent condensation and corrosion in electrical enclosures.
Pre-set Humidity Level: Fixed at 50% RH for consistent performance.
High Switching Capacity: Suitable for controlling heaters, fans, or other devices.
DIN Rail Mountable: Easy installation on standard 35 mm DIN rails.
Durable Construction: Designed for over 50,000 cycles of operation.
High Protection Rating: IP20 rating ensures protection against solid objects.
