EFR 012 Electronic Hygrostat, AC 120 V, 50/60 Hz, 65 % RH pre-set Setting Range
SKU: 01246.9-00
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Pricing available on request

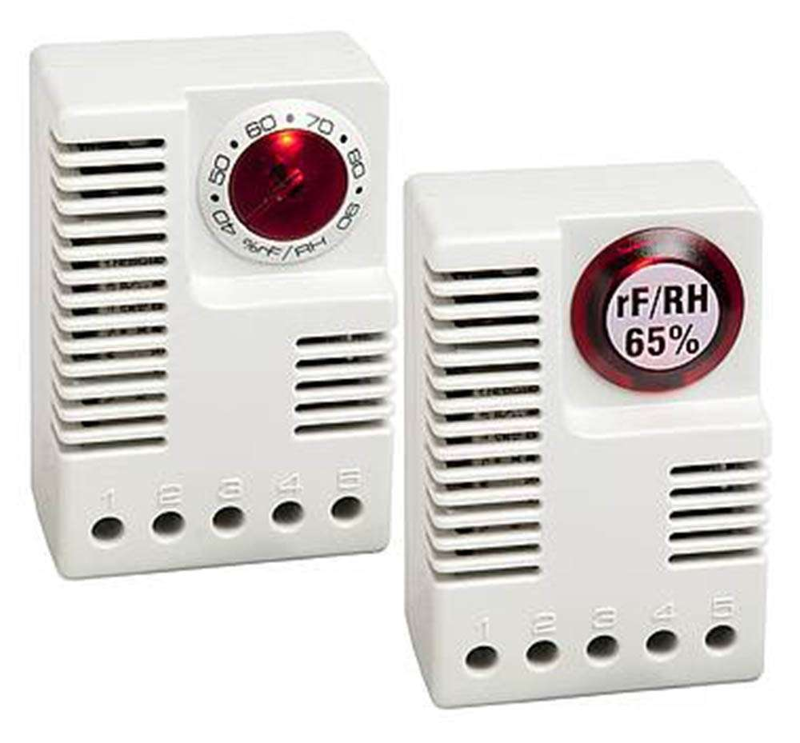

EFR 012 Panel Electronic Hygrostat:
The electronic hygrostat detects relative humidity in an enclosure using electric/electronic components and activates a heater at the predetermined point, thereby preventing condensation in the enclosure.
When the attached heater is turned on, the LED embedded into the adjustment knob lights up.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Operating Voltage: 120VAC, 50/60Hz.
Pre-set Relative Humidity: 65% RH.
Switch Difference: 5% RH (± 1% RH tolerance) at 77°F (25°C) and 50% RH.
Reaction Time: Approximately 5 seconds.
Contact Type: SPDT / change-over contact (relay).
Service Life: > 50,000 cycles.
Max. Switching Capacity (Relay Output):
8A resistive / 1.6A inductive @ 120VAC.
8A resistive / 1.6A inductive @ 240VAC.
100W @ 24VDC.
Max. Inrush Current: 16A VAC for 10 seconds.
Connection: 5-pole terminal, clamping torque 0.5Nm max.; solid wire & stranded wire (with wire end ferrule) - AWG 14 max. (2.5mm²).
Housing: Plastic according to UL94 V-0, light grey.
Mounting: Moulded plastic clip for 35mm DIN rail, 60715.
Mounting Position: Vertical.
Operating/Storage Temperature: +32 to +140°F (0 to +60°C) / -4 to +158°F (-20 to +70°C).
Operating/Storage Humidity: 90% RH (non-condensing).
Dimensions: 2.54 x 1.65 x 1.5” (64.5 x 42 x 38mm).
Weight: Approximately 2.3 oz. (65g).
Protection Type: IP20.
Approval: cUL (UL File No. E164102).
Features:
Adjustable & Pre-set Relative Humidity Setpoints: Allows for precise control of humidity levels.
Compact Design: Space-saving and easy to install.
High Switching Capacity: Suitable for various applications with high power requirements.
Optical Function Display (LED): Provides a visual indication when the connected device is in operation.
DIN Rail Mountable: Easy to mount on standard DIN rails.
Prevents Condensation: Senses relative humidity and activates a heater to prevent condensation in enclosures.
