CLI MH 110 HSTR
SKU: 0189400000
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Pricing available on request
Description:

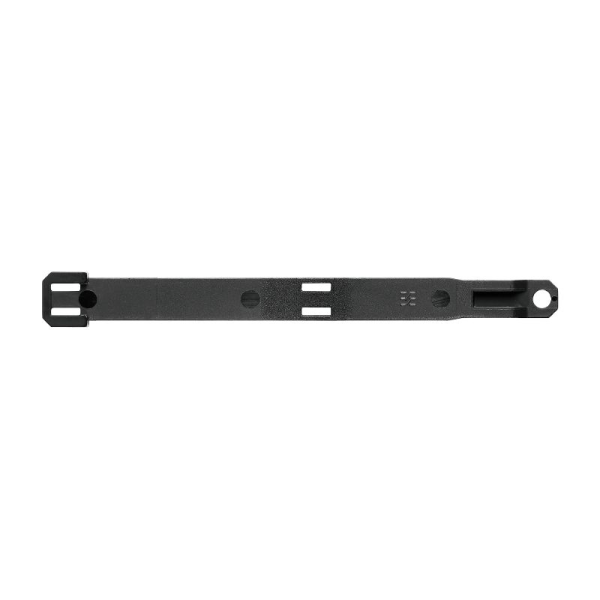

CLI M identification markers are slipped onto CLI MH carrier strips and attached with cable ties.
The technique works especially well with large cross-sections of cables and conductors.
Buy currently uses Select Automation shop pricing and checkout.
Advantages:
Combination marker for cable and pipe markers.
One size for all diameters above 16 mm².
Unrestricted combination options.
Closed, permanently attached markers.
Very good legibility.
Specifications:
Version: Cable Line, Accessories.
Quantity: 100.
Depth: 3 mm.
Height: 110 mm.
Width: 11.3 mm.
Operating temperature range: -30...100 °C.
Colour: black.
Material: Polyamide 66.
Material colour according to resistance code: 0.
Number of markers per combination: 1 Component part = Accessories.
Type of printing: neutral.
UL 94 flammability rating: V-0.
Halogen-free.
Conductor and cable markers:
Conductor O.D.: 10 - 317 mm.
Conductor O.D., max.: 317 mm.
Conductor O.D., min.: 10 mm.
Conductor cross-section, max.: 500 mm².
Conductor cross-section, min.: 16 mm².
Cross-section for connected wire: 16 - 500 mm².
