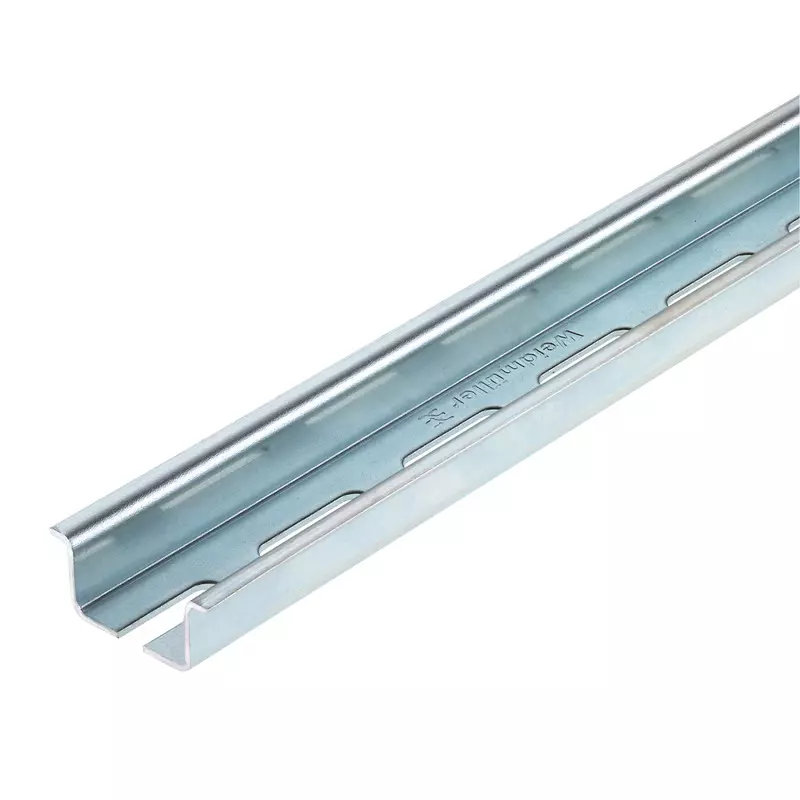

TS 35X15/LL 2M/ST/ZN
SKU: 0236500000
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Pricing available on request
Steel DIN Rails:
Steel DIN rails are the most widely used on the market.
Metal DIN rails provide the lowest short-circuit protection, comparable to stainless steel.
Buy currently uses Select Automation shop pricing and checkout.
Specifications weights and dimensions:
Depth: 15 mm.
Height: 35 mm.
Width: 2,000 mm.
Net weight: 627 g.
Mounting rail:
Drill-hole diameter: 5.2 mm.
Installation advice: Direct mounting.
Length of terminal rail:
Maximum length: 2,000 mm.
Nominal length: 2,000 mm.
Minimum: 0 mm.
Material: Steel.
The mounting rail is pre-punched.
The short circuit strength corresponds to E-Cu wire: 50 mm².
The short-term withstand current per second is 6 kA, according to IEC 60947-7-2.
Slit gap: 11 mm.
Slit length: 25 mm.
Slit width: 5.2 mm.
Slotted drill holes: Yes.
Solder eyelet hole diameter (D): 5.2 mm.
Spacing of holes, centre-to-centre: 36 mm.
Standards is in accordance with DIN EN 60715.
The surface finish is galvanic zinc-plated and passivated.
Thickness: 1.5 mm.
