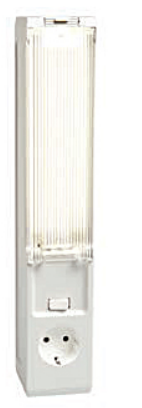

KL 025 Compact Panel Light 11 W, AC 230V, 50Hz.
SKU: 02502.0-00
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Pricing available on request
KL 025 Compact Panel Lights:
The small KL 025 panel light was specifically intended for use in enclosures containing electrical/electronic components.
A powerful magnet allows the lamp to be placed flexibly in any desired location in metal enclosures, saving time and avoiding installation issues.
The integrated electrical socket enables the use of extra equipment.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Voltage Range: AC 230V, 50Hz.
Power Consumption: 11 W.
Light Output: 900 lm (equivalent to a 75 W incandescent bulb).
Lamp Type: Compact fluorescent lamp with integral starter.
Service Life: 5,000 hours.
Switch: On/Off light switch.
Connection: 3-pole terminal 2.5 mm² with cable clamp, torque 0.8 Nm max.
Mounting Options: Magnet fixing.
Casing: Plastic, light grey.
Dimensions: 355 x 65 x 70 mm.
Weight: Approx. 1 kg.
Operating Temperature: -20°C to +50°C.
Storage Temperature: -45°C to +70°C.
Max. Environment Humidity: 90% RH (non-condensing).
Protection Class: IP20.
Approvals: VDE, EAC.
