SL 025 Slimline Panel Lights with on-off switch 11 W, AC 230V, 50Hz
SKU: 02520.0-00
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Pricing available on request

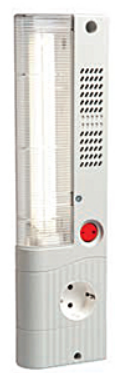

SL 025 On/Off Switch Slimline Panel Lights:
For all kinds of panels and enclosures, particularly in situations where space is limited, the flat slimline SL 025 panel light with movement sensor is ideal.
The lamp can be screwed onto a small or broad surface.
It may also be easily installed in any location within a steel enclosure thanks to the magnet option.
An integrated electrical plug that allows for the use of extra appliances is provided for both variants.
The movement sensor acts as a door contact switch.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Voltage Range: AC 230V, 50Hz.
Power Consumption: 11 W.
Light Output: 900 lm (equivalent to a 75 W incandescent bulb).
Lamp Type: Compact fluorescent lamp with integral starter.
Service Life: 5,000 hours.
Switch: On/Off light switch.
Connection: 3-pole terminal 2.5 mm² with cable clamp, torque 0.8 Nm max.
Mounting Options: Magnet fixing (optional).
Casing: Plastic, light grey.
Dimensions: 355 x 65 x 70 mm.
Weight: Approx. 1 kg.
Operating Temperature: -20°C to +50°C.
Storage Temperature: -45°C to +70°C.
Max. Environment Humidity: 90% RH (non-condensing).
Protection Class: IP20.
Approvals: VDE, EAC.
