CLI C 02-3 GE/SW 0 MP
SKU: 0252111502
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Pricing available on request
Description:

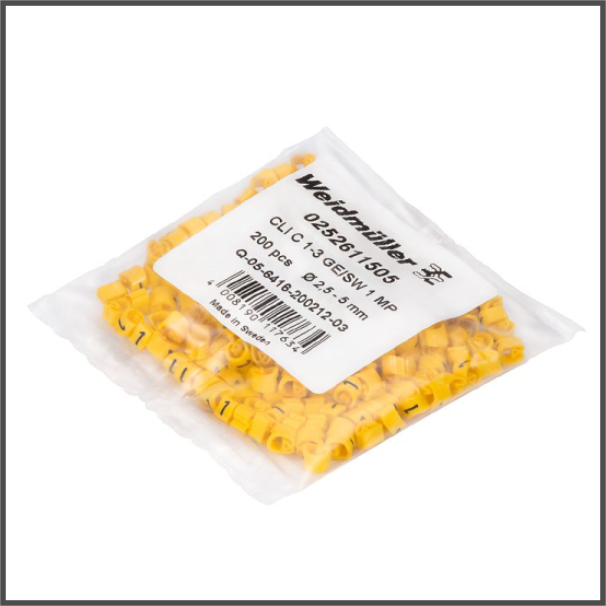

Mounted on unconnected conductors are CLI C conductor markings.
For labeling conductor cross-sections ranging from 0.5 mm2 to a maximum of 70 mm2, four distinct sizes are offered.
The markers are ready to use; they have already been printed.
Combining the individual markers allows for individual labeling.
Closed markers are reliable and suitable for installation on disconnected connections.
A unique, flexible bellow profile ensures a broad application range.
Fitting is quick and straightforward, requiring no effort.
Labeling is made simple with matching accessories.
Permanent and high-quality labeling.
High contrast for optimal legibility.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Version: Cable Line, Conductor and cable markers.
Quantity: 200.
Depth: 3.5 mm.
Height: 3 mm.
Width: 3.4 mm.
Operating temperature range: -30...80 °C.
Colour: yellow.
Colour of printing: black.
Halogen.
Material: PVC, soft, without Cadmium.
Material colour according to resistance code: 4.
Number of markers per combination: 1 Component part = Conductor and cable markers.
Orientation of print: horizontal.
Printed characters: Numbers.
Printing: 0.
Printing method: hot embossing.
Type of printing: Standard.
UL 94 flammability rating: V-0.
Multi-Pack.
Conductor and cable markers:
Conductor O.D.: 1.3 - 3 mm.
Conductor O.D., max.: 3 mm.
Conductor O.D., min.: 1.3 mm.
Conductor cross-section, max.: 1.5 mm².
Conductor cross-section, min.: 0.2 mm².
Cross-section for connected wire: 0.2 - 1.5 mm².
