CLI C 1-3 BL/SW - MP
SKU: 0252611741
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Pricing available on request

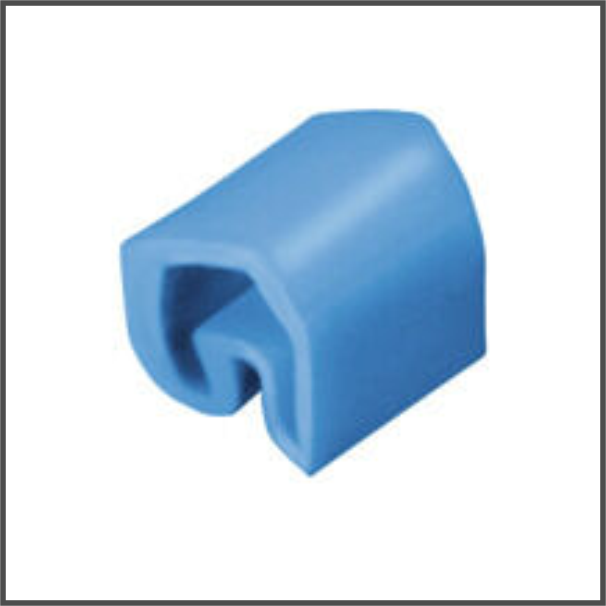

CLI C 1-3 BL/WS - MP:
CLI C conductor markers are used to mark disconnected conductors.
Conductor cross-sections between 0.5 mm² and a maximum of 70 mm² can be labelled in four different sizes.
Buy currently uses Select Automation shop pricing and checkout.
Specifications dimensions and weights:
Depth: 5 mm.
Depth (inches): 0.197 inch.
Height: 3 mm.
Height (inches): 0.118 inch.
Width: 4.2 mm.
Width (inches): 0.165 inch.
Net weight: 0.055 g.
Temperatures:
Operating temperature range: -30 - 80 °C.
General data:
Colour: Blue.
Colour of printing: White.
Halogen: Yes.
Insulation cross-section, max.: 5.
Material: PVC, soft, without Cadmium.
Material colour according to resistance code: 4.
Number of markers per combination: 1 Component part = Conductor and cable markers.
Number of markers per packaging unit: Form of supply: Component part.
Operating temperature range: -30 - 80 °C.
Operating temperature range, max.: 80 °C.
Operating temperature range, min.: -30 °C.
Orientation of print: horizontal.
Printed characters: Symbols.
Printing: -.
Printing method: hot embossing.
Recommended industries: Process, Machinery.
Type of printing: Standard.
UL 94 flammability rating: V-0.
Version: Multipack.
Width: 4.2 mm.
Conductor and cable markers:
Conductor cross-section, max.: 4 mm².
Conductor cross-section, min.: 1.5 mm².
Conductor O.D.: 2.5 - 5 mm.
Conductor O.D., max.: 5 mm.
Conductor O.D., min.: 2.5 mm.
Cross-section for connected wire: 1.5 - 4 mm².
Halogen: Yes.
