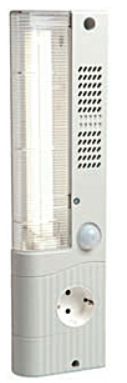

SL 025 Slimline Panel Lights with movement sensor, 02527.1-17
SKU: 02527.1-17
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Pricing available on request
SL 025 Motion-activated Slimline Panel Lights:
For all kinds of panels and enclosures, particularly in situations where space is limited, the flat slimline SL 025 panel light with movement sensor is ideal.
The lamp can be screwed onto a small or broad surface.
It may also be easily installed in any location within a steel enclosure thanks to the magnet option.
An integrated electrical plug that allows for the use of extra appliances is provided for both variants.
The movement sensor acts as a door contact switch.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Operating Voltage: AC 120 V, 50/60 Hz.
Power Consumption: 9 W.
Luminosity: 510 Lm (equivalent to a 45 W light bulb).
Lamp Type: Energy-saving lamp, 2G7 socket.
Service Life: 10,000 hours.
Switch: PIR movement sensor with a fixed switch-on duration of approximately 6 minutes.
Connection: Terminal 2.5 mm² with cable clamp, torque 0.8 Nm max.
Mounting: Screw fixing (M5, 300 mm centres) or optional magnet fixing.
Casing: Plastic according to UL94 V-0, light grey.
Dimensions: 345 x 91 x 40 mm.
Fitting Position: Narrow surface or broad surface.
Operating/Storage Temperature: -20 to +50 °C (-4 to +122 °F) / -45 to +70 °C (-49 to +158 °F).
Operating/Storage Humidity: Max. 90% RH (non-condensing).
Protection Type: IP20.
Weight: Approximately 0.5 kg.
Protection Class: II (double insulated).
Approvals: UL File No. E234324, EAC.
