CLI C 1-6 SDR CD
SKU: 0252709999
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Pricing available on request

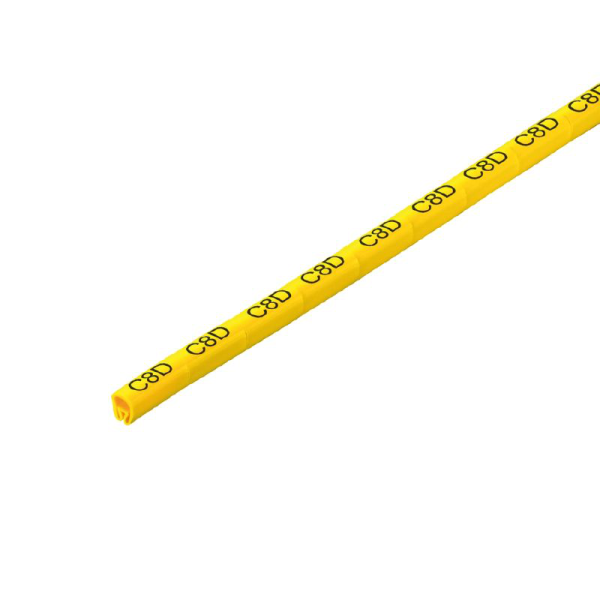

CLI C 1-6 SDR CD:
CLI C conductor markers are used to mark disconnected conductors.
Conductor cross-sections between 0.5 mm² and a maximum of 70 mm² can be labelled in four different sizes.
The markers are already printed and ready to use.
Individual labelling can be achieved by combining the individual markers.
Closed markers are reliable and can be mounted on disconnected lines.
A unique flexible bellow profile ensures a broad application range.
Fitting is quick and straightforward, requiring no effort.
Labelling is made simple with matching accessories.
Permanent, higher quality labelling.
High contrast for optimal legibility.
Buy currently uses Select Automation shop pricing and checkout.
Specifications dimensions and weights:
Depth: 5 mm.
Depth (inches): 0.197 inch.
Height: 6 mm.
Height (inches): 0.236 inch.
Width: 4.2 mm.
Width (inches): 0.165 inch.
Net weight: 0.14 g.
Temperatures:
Operating temperature range: 80 °C.
General data:
Colour: To customer specification.
Colour of printing: Black.
Halogen: Yes.
Material: PVC, soft, without Cadmium.
Operating temperature range: 80 °C.
Operating temperature range, max.: 80 °C.
Orientation of print: horizontal.
Printed characters: To customer specification.
Printing: Custom printing.
Printing method: Ink jet technology.
Recommended industries: Process, Machinery.
Type of printing: To customer specification.
UL 94 flammability rating: V-0.
Version: CD.
Width: 4.2 mm.
Conductor and cable markers:
Conductor cross-section, max.: 4 mm².
Conductor cross-section, min.: 1.5 mm².
Conductor O.D.: 2.5 - 5 mm.
Conductor O.D., max.: 5 mm.
Conductor O.D., min.: 2.5 mm.
Cross-section for connected wire: 1.5 - 4 mm².
Halogen: Yes.
