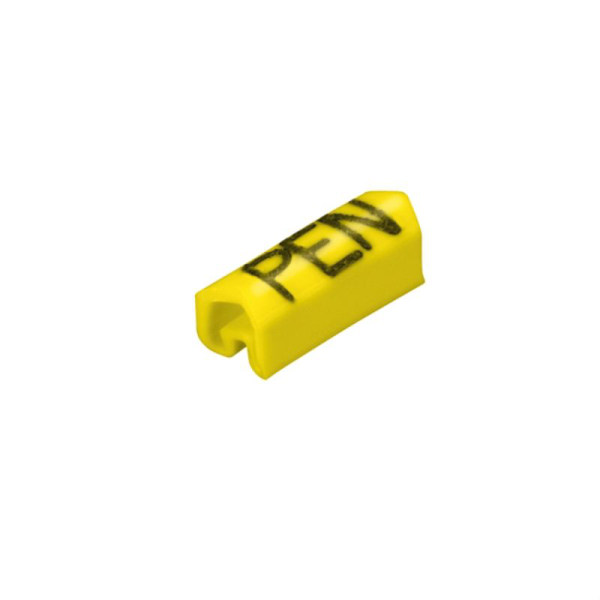

CLI C 1-9 GE/SW PEN MP
SKU: 0252711734
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Pricing available on request
Conductor and cable markers:
Conductor O.D.: 2.5 - 5 mm.
Conductor O.D., max.: 5 mm.
Conductor O.D., min.: 2.5 mm.
Conductor cross-section, max.: 4 mm².
Conductor cross-section, min.: 1.5 mm².
Cross-section for connected wire: 1.5 - 4 mm².
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Version: Cable Line, Conductor and cable markers, yellow.
Depth: 5 mm.
Height: 9 mm.
Width: 4.2 mm.
Operating temperature: -30...80 °C.
Colour: yellow.
Colour of printing: black.
Halogen
Insulation cross-section, max.: 5.
Material: PVC, soft, without Cadmium.
Material colour according to resistance code: 4.
Number of markers per combination: 1 Component part = Conductor and cable markers.
Operating temperature range, max.: 80 °C.
Operating temperature range, min.: -30 °C.
Orientation of print: horizontal.
Printed characters: Symbols.
Printing: PEN.
Printing method: hot embossing.
Type of printing: Standard.
UL 94 flammability rating: V-0.
Multi pack.
Quantity per pack: 100.
