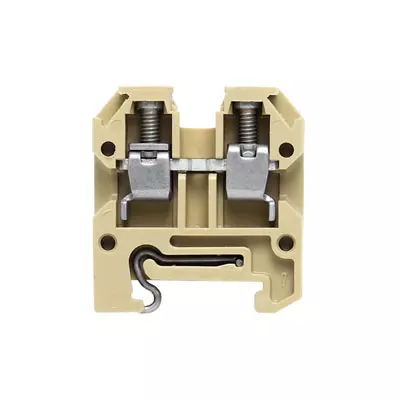

AKZ 4
SKU: 0294360000
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Pricing available on request
AKZ 4:
In electrical engineering and panel building, the classical requirement is to pass through power, signal, and data.
The insulating material, the connection system, and the design of the terminal blocks are the differentiating features.
One or more conductors can be joined or connected using a feed-through terminal block.
They may have one or more connection levels that are insulated or have the same potential against one another.
Buy currently uses Select Automation shop pricing and checkout.
Specifications weights and dimensions:
Depth: 29 mm.
Height: 30.5 mm.
Width: 6.1 mm.
Net weight: 5.17 g.
Temperatures:
Storage temperature -25 °C...55 °C.
Operating temperature range: For operating temperature range see EC Design Test Certificate / IEC Ex-Certificate of Conformity.
Continuous operating temp., min: -60 °C.
Continuous operating temp., max: 130 °C.
Material data:
Material: Wemid.
Colour: dark beige.
UL 94 flammability rating: V-0.
Additional technical data:
Explosion-tested version: Yes.
Number of similar terminals: 1.
Open sides: right.
Type of mounting: Snap-on.
Dimensions:
TS 15 offset: 13.5 mm.
General:
Number of poles: 1.
Rail TS: 15.
Standards: IEC 60947-7-1.
Wire connection cross section AWG, max: AWG 12.
Wire connection cross section AWG, min: AWG 24.
Rating data:
Rated cross-section: 4 mm².
Rated voltage: 400 V.
Rated DC voltage: 400 V.
Rated current: 32 A.
Current at maximum wires: 41 A.
Standards: IEC 60947-7-1.
Volume resistance according to IEC 60947-7-x: 1 mΩ.
Rated impulse withstand voltage: 6 kV.
Power loss in accordance with IEC 60947-7-x: 1.02 W.
Pollution severity: 3.
