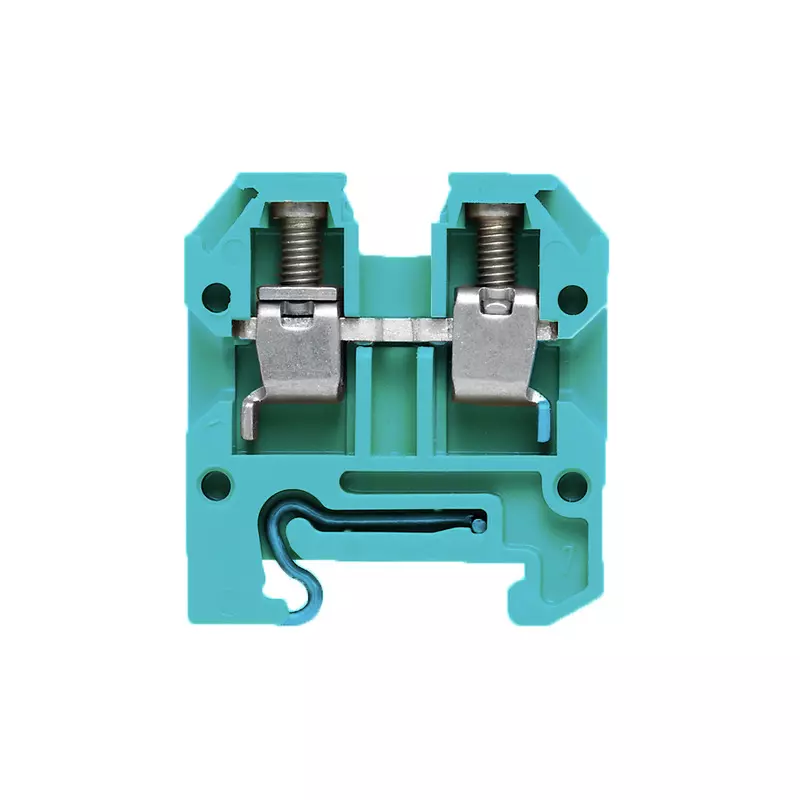

AKZ 4 BL
SKU: 0294380000
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Pricing available on request
AKZ 4 BL:
Power, signal, and data transmission are standard needs in electrical engineering and panel building.
Differentiating features include the insulating material, connection system, and terminal block design.
It is suitable to join and/or connect one or more conductors using a feed-through terminal block.
They could have one or more connection levels that have either the same potential or are isolated from one another.
Buy currently uses Select Automation shop pricing and checkout.
Specifications weights and dimensions:
Depth: 29 mm.
Height: 30.5 mm.
Width: 6.1 mm.
Net weight: 5.21 g.
Temperatures:
Storage temperature -25 °C...55 °C.
Operating temperature range: For operating temperature range see EC Design Test Certificate / IEC Ex-Certificate of Conformity.
Continuous operating temp., min: -60 °C.
Continuous operating temp., max: 130 °C.
Material data:
Material: Wemid.
Colour: Blue.
UL 94 flammability rating: V-0.
Additional technical data:
Explosion-tested version: Yes.
Number of similar terminals: 1.
Open sides: right.
Type of mounting: Snap-on.
Dimensions:
TS 15 offset: 13.5 mm.
General:
Number of poles: 1.
Rail: TS 15.
Standards: IEC 60947-7-1.
Wire connection cross section AWG, max: AWG 12.
Wire connection cross section AWG, min: AWG 24.
Rating data:
Rated cross-section: 4 mm².
Rated voltage: 400 V.
Rated DC voltage: 400 V.
Rated current: 32 A.
Current at maximum wires: 41 A.
Standards: IEC 60947-7-1.
Volume resistance according to IEC 60947-7-x: 1 mΩ.
Rated impulse withstand voltage: 6 kV.
Power loss in accordance with IEC 60947-7-x: 1.02 W.
Pollution severity: 3.
