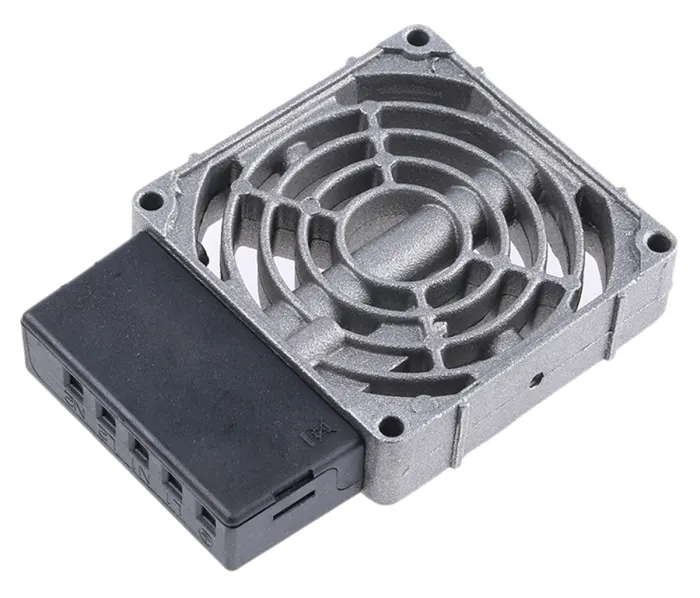

HV 031 Anti Condensation Fan Heater, 150W, AC 230 C, 50/60 Hz
SKU: 03101.0-00
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Pricing available on request
HV 031 Anti Condensation Fan Heater for Panels:
Compact high-performance fan heater minimizes moisture and frost development while providing an evenly distributed interior air temperature in enclosures containing electric/electronic components.
This fan heater can only be used with a fan, but it is also available without one for self-assembly (HV 031) and with a pre-configured fan (HVL 031).
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Power Consumption: 150 W.
Voltage Range: 230 V AC.
Dimensions: 112 x 80 x 22 mm.
Protection Rating: IP20.
Operating Temperature Range: -45 to 70°C.
Features:
Material: Die-cast aluminium body with a glass bead finish.
Heating Element: High-performance cartridge.
Mounting: Clip fixing.
Connection: 3-pole terminal AWG 14 max. (2.5 mm²), torque 0.8 Nm max.
Design: Compact and flat design for space-saving.
Safety: Built-in temperature safety cut-out.
