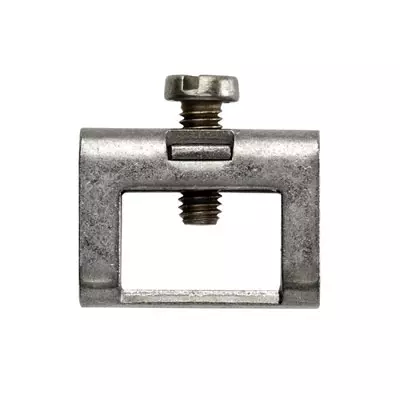

Busbar clamping yoke:
Conductors on a bus bar can be connected in a space-saving manner with uninsulated tap-off connections.
Dimensions and weights:
Depth: 16 mm.
Height: 15.5 mm.
Width: 5.3 mm.
Net weight: 3.001 g.
Buy currently uses Select Automation shop pricing and checkout.
Specifications rating data IECEx/ATEX:
Certificate No. (ATEX): DEMKO03ATEX136028U.
Certificate No. (IECEX): IECEXULD13.0005U.
Wire cross section max. (ATEX): 4 mm².
Wire cross section max. (IECEX): 4 mm².
Operating temperature range: For operating temperature range see EC Design Test Certificate / IEC Ex-Certificate of Conformity.
Marking EN 60079-7: Ex eb II C Gb.
Ex 2014/34/EU label: II 2 G D.
Safety notice:
Installation instructions:
The potential equalisation (PE) rail modules are suitable for use in housings in atmospheres with flammable gases and dust.
For use in areas with flammable gases, these housings must meet the requirements of EN 60079-0 and EN 60079-7.
For use in areas with flammable dust, these housings must meet the requirements of EN 60079-0 and EN 60079-31.
When combined with other terminal block ranges and sizes, and when other accessories are used, you must comply with the clearance and creepage distances given.
Regarding accessory use, the manufacturer's instructions must be followed.
List of restrictions:
The PE rail modules are considered one component, with Ex marking when used with the busbar holders of type SH and WEW.
When used independently, the above-named components are not covered by this certificate.
System specifications:
Version: for busbar 10 x 3 mm, For subsequently slewing-in.
Additional technical data:
Installation advice Feed-through (bushing).
Type of mounting when screwed in.
CSA rating data:
Certificate No. (CSA): 12400-237.
Wire cross section max. (CSA): 10 AWG.
Wire cross section min. (CSA): 26 AWG.
Conductors for clamping (rated connection):
Clamping screw M 3.
Stripping length 16 mm.
Tightening torque, max. 1 Nm.
Tightening torque, min. 0.5 Nm.
Type of connection Clamping yoke.
Wire connection cross section, finely stranded, max. 4 mm².
Wire connection cross section, finely stranded, min. 0.5 mm².
Wire connection cross-section, solid core, max. 6 mm².
Wire connection cross-section, solid core, min. 0.5 mm².
General:
Installation advice Feed-through (bushing).
UL rating data:
Certificate No. (UR): E60693.
Conductor size Factory wiring max. (UR): 12 AWG.
Conductor size Factory wiring min. (UR): 20 AWG.
Conductor size Field wiring max. (UR): 12 AWG.
Conductor size Field wiring min. (UR): 20 AWG.
Temperatures:
Operating temperature range: For operating temperature range see EC Design Test Certificate / IEC Ex-Certificate of Conformity.
Material data:
Material: Steel.
Colour: Silver.
