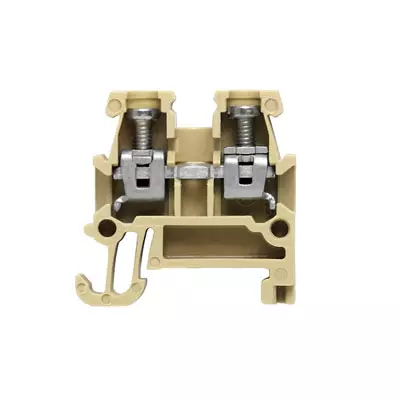

AKZ 1.5

Specifications weights and dimensions: Depth: 9.9 mm. Height: 4 mm. Width: 23.3 mm. Net weight: 3.06 g. Temperatures: Storage temperature: -25 °C...55 °C. Operating temperature range: For operating temperature range see EC Design Test Certificate / IEC Ex-Certificate of Conformity. Continuous operating temp., min.: -60 °C. Continuous operating temp., max.: 130 °C. Material data: Material: PA 66. Colour: beige / yellow. UL 94 flammability rating: V-2. Rating data IECEx/AREX: Certificate No. (ATEX): TUEV18ATEX8221U. Certificate No. (IECEX): IECEXTUR18.0024U. Max. voltage (ATEX): 220 V. Current (ATEX): 17.5 A. Wire cross section max. (ATEX): 2.5 mm². Max. voltage (IECEX): 220 V. Current (IECEX): 17.5 A. Wire cross section max. (IECEX): 2.5 mm². Operating temperature range: For operating temperature range see EC Design Test Certificate / IEC Ex-Certificate of Conformity. Marking EN 60079-7: Ex eb II C Gb. Ex 2014/34/EU label: II 2 G D. System specifications: Version: Screw connection, for screwable cross-connection, One end without connector. End cover plate required: Yes. Number of potentials: 1. Number of levels: 1. Number of clamping points per level: 2. Number of potentials per tier: 1. Levels cross-connected internally: No. PE connection: No. Rail: TS 15. N-function: No. PE function: No. PEN function: No. Additional technical data: Explosion-tested version: Yes. Number of similar terminals: 1. Open sides: right. Type of mounting: Clamped. CSA rating data: Certificate No. (CSA): 12400-144. Current size C (CSA): 10 A. Voltage size C (CSA): 300 V. Wire cross section max. (CSA): 16 AWG. Wire cross section min. (CSA): 24 AWG. Conductors for clamping (additional connection): Connection type, additional connection: Screw connection. Conductors for clamping (rated connection): Blade size: 3.0 x 0.5 mm. Clamping range, max.: 2.5 mm². Clamping range, min.: 0.21 mm². Clamping screw: M 2.5. Connection cross-section, stranded, max.: 1.5 mm². Connection cross-section, stranded, min.: 1.5 mm². Connection direction: on side. Gauge to IEC 60947-1: A1. Number of connections: 2. Stripping length: 7 mm. Tightening torque, max.: 0.6 Nm. Tightening torque, min.: 0.4 Nm. Torque level with DMS electric screwdriver: 1. Twin wire-end ferrules, max.: 0.75 mm². Twin wire-end ferrules, min.: 0.5 mm². Type of connection: Screw connection. Wire connection cross section AWG, max.: AWG 14. Wire connection cross section AWG, min.: AWG 24. Wire connection cross section, finely stranded, max.: 1.5 mm². Wire connection cross section, finely stranded, min.: 0.5 mm². Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, max.: 1.5 mm². Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, min.: 0.5 mm². Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max.: 1.5 mm². Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min.: 0.5 mm². Wire connection cross-section, solid core, max.: 2.5 mm². Wire connection cross-section, solid core, min.: 0.5 mm². Dimensions: TS 15 offset: 12.4 mm. General: Number of poles: 1. Rail: TS 15. Standards: IEC 60947-7-1. Wire connection cross section AWG, max.: AWG 14. Wire connection cross section AWG, min.: AWG 24. Rating data: Rated cross-section: 1.5 mm². Rated voltage: 250 V. Rated DC voltage: 250 V. Rated current: 17.5 A. Current at maximum wires: 24 A. Standards: IEC 60947-7-1. Volume resistance according to IEC 60947-7-x: 1.83 mΩ. Rated impulse withstand voltage: 4 kV. Power loss in accordance with IEC 60947-7-x: 0.56 W. Pollution severity: 3. UL rating data: Certificate No. (UR): E60693. Conductor size Factory wiring max. (UR): 14 AWG. Conductor size Factory wiring min. (UR): 22 AWG. Conductor size Field wiring max. (UR): 14 AWG. Conductor size Field wiring min. (UR): 22 AWG. Current size C (UR): 15 A. Voltage size C (UR): 150 V.
