TW AKZ4
SKU: 0348260000
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Pricing available on request

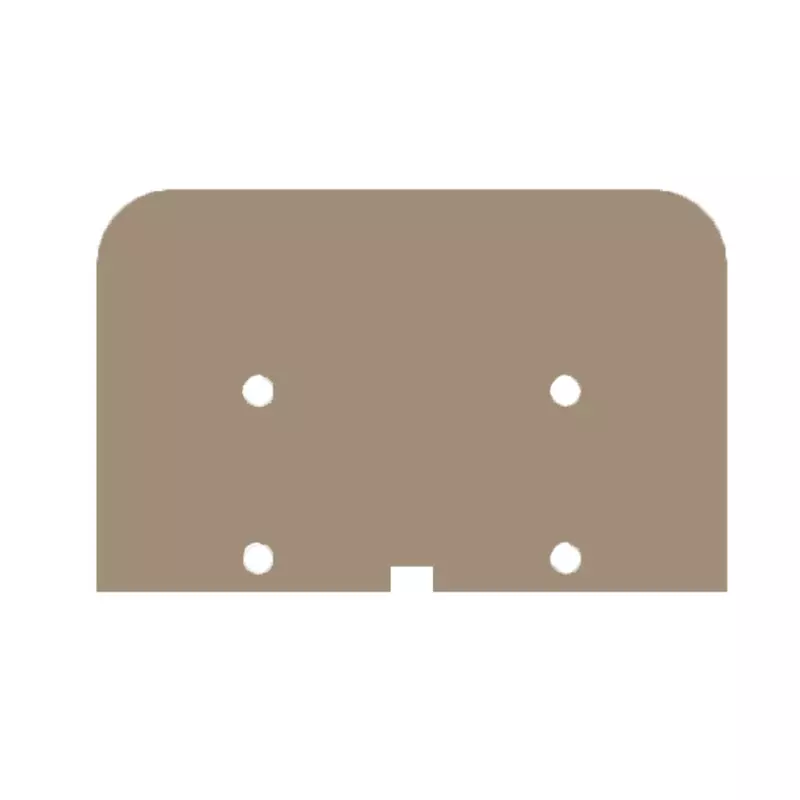

Terminal partition plate:
A partition plate is used to separate circuits optically or to isolate electrical signals from nearby cross-connectors.
The contour may be larger than the adjacent terminal blocks, in contrast to the end plate.
However, it should not be smaller since otherwise the required clearance and creepage distances inside the application would be compromised.
Buy currently uses Select Automation shop pricing and checkout.
Specifications weights and dimensions:
Depth: 30 mm.
Height: 47 mm.
Width: 0.6 mm.
Net weight: 0.992 g.
Temperatures:
Storage temperature: -25°C - 55°C.
Continuous operating temp., min: -50 °C.
Continuous operating temp., max: 100 °C.
Material data:
Material: PA66.
Colour: Dark beige.
UL 94 flammability rating: V-2.
System specifications:
Version: Intermediate plate.
Additional technical data:
Installation advice: Used between terminals.
Snap-on: No.
General:
Installation advice: Used between terminals.
