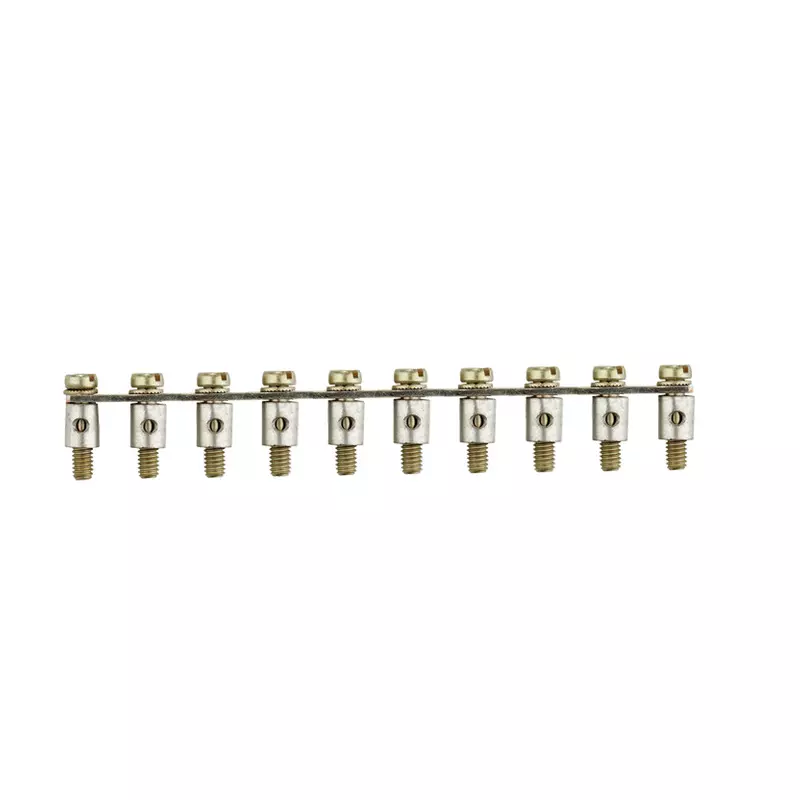

Q 10 AKZ4
SKU: 0368600000
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Pricing available on request
Screwable cross-connections:
Screwable cross-connections are easy to install and demount.
Because of the large contact surface, even high currents can be conveyed with the highest contact reliability.
Buy currently uses Select Automation shop pricing and checkout.
Specifications weights and dimensions:
Depth: 9.9 mm.
Height: 4 mm.
Width: 59.9 mm.
Net weight: 7.88 g.
Temperatures:
Storage temperature: -25°C - 55°C.
Material data:
Material: Cu Zn.
Colour: grey.
System specifications:
Version: for cross-connection link.
Additional technical data:
Not an explosion-tested version.
Installation advice: Mount directly.
Type of fixing: when screwed in.
Cross-connector:
10 cross-connected terminals.
Rated current, 2-pole: 32 A
Rated current, multi-pole: 32 A.
Cross-connector type.
Dimensions:
Pitch in mm (P): 6.1 mm.
General:
Installation advice: Mount directly.
Number of poles: 10.
Rating data:
Rated current: 24 A.
