ZBE 6
SKU: 0459500000
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Pricing available on request

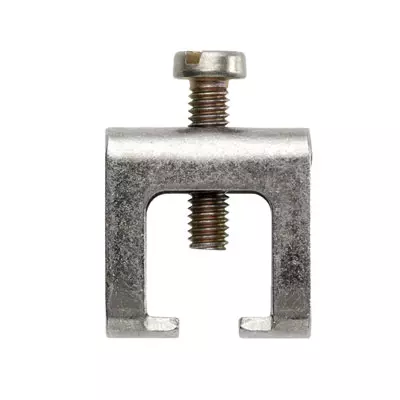

Clamping yoke (busbar):
Conductors on a bus bar can relate to space-saving uninsulated bus bar tap-off terminals.
Weights and dimensions:
Depth: 28 mm.
Height: 19 mm.
Width: 8 mm.
Net weight: 7.3 g.
Buy currently uses Select Automation shop pricing and checkout.
Specifications System specifications:
Version: for busbar 10 x 3 mm, for busbar 10 x 5 mm.
Additional technical data:
Installation advice: Busbar, Direct mounting.
Type of mounting: when screwed in.
CSA rating data:
Certificate No. (CSA): 12400-237.
Wire cross section max. (CSA): 8 AWG.
Wire cross section min. (CSA): 22 AWG.
Conductors for clamping (rated connection):
Clamping screw: M 4.
Stripping length: 19 mm.
Tightening torque, min: 1.2 Nm.
Type of connection: Clamping yoke.
Wire connection cross section, finely stranded, max.: 10 mm².
Wire connection cross section, finely stranded, min.: 1.5 mm².
Wire connection cross-section, solid core, max.: 10 mm².
Wire connection cross-section, solid core, min.: 1 mm².
General:
Installation advice: Busbar, Direct mounting.
UL rating data:
Certificate No. (UR): E60693.
Conductor size Factory wiring max. (UR): 12 AWG.
Conductor size Factory wiring min. (UR): 20 AWG.
Conductor size Field wiring max. (UR): 12 AWG.
Conductor size Field wiring min. (UR): 20 AWG.
Temperatures:
Operating temperature range: For operating temperature range see EC Design Test Certificate / IEC Ex-Certificate of Conformity.
Material data:
Material: Steel.
Colour: Silver.
