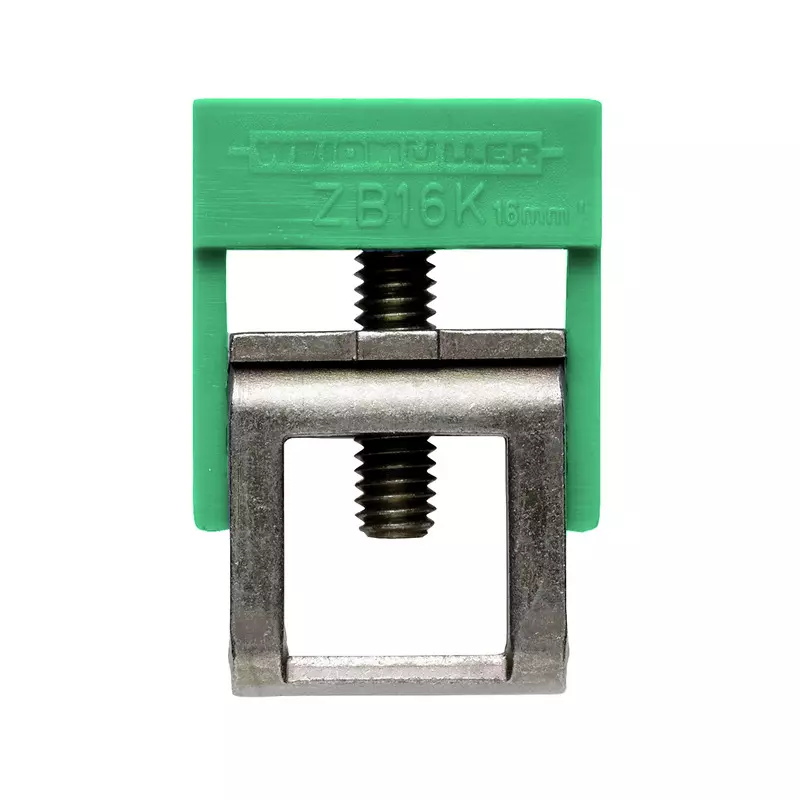

ZB 16K GE/GN
SKU: 0502860000
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Pricing available on request
Busbar clamping yoke:
Bus bar taps with insulation provide finger safety on one hand.
On the other side, coloured insulation shows the respective potential, such as the neutral conductor or PE.
Weights and dimensions:
Depth: 26.8 mm.
Height: 19 mm.
Width: 10 mm.
Net weight: 8.6 g.
Buy currently uses Select Automation shop pricing and checkout.
System specifications:
Version: for busbar 10 x 3 mm.
Additional technical data:
Installation advice: Feed-through (bushing).
Type of mounting: when screwed in.
CSA rating data:
Certificate No. (CSA): 12400-237.
Wire cross section max. (CSA): 6 AWG
Wire cross section min. (CSA): 12 AWG.
Conductors for clamping (rated connection):
Clamping screw: M 4.
Connection cross-section, stranded, max: 25 mm².
Connection cross-section, stranded, min: 16 mm².
Stripping length: 16 mm.
Tightening torque, min: 2.6 Nm.
Type of connection: Clamping yoke.
Wire connection cross section, finely stranded, max.: 16 mm².
Wire connection cross section, finely stranded, min.: 2.5 mm².
Wire connection cross-section, solid core, max.: 16 mm².
Wire connection cross-section, solid core, min.: 2.5 mm².
Dimensions:
TS 35 offset: 46 mm.
General:
Installation advice: Feed-through (bushing).
UL rating data:
Certificate No. (UR): E60693.
Conductor size Factory wiring max. (UR): 4 AWG.
Conductor size Factory wiring min. (UR): 12 AWG.
Conductor size Field wiring max. (UR): 4 AWG.
Conductor size Field wiring min. (UR): 12 AWG.
Temperatures:
Operating temperature range: For operating temperature range see EC Design Test Certificate / IEC Ex-Certificate of Conformity.
Material data:
Material: Steel.
Insulating material PA
Colour: Silver.
