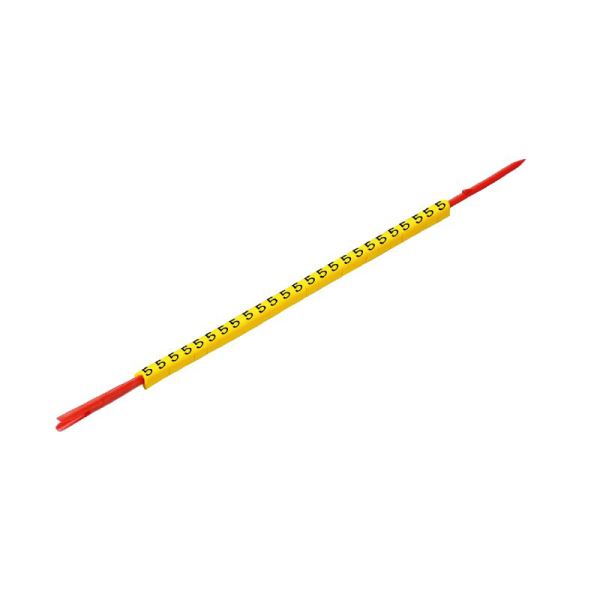

CLI R 02-3 GE/SW Å, CableLine, Mounting Mandrel
SKU: 0560001698
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Pricing available on request
CLI R 02-3 GE/SW Å:
The Cable Line series of wire and cable marking items offers users solutions for a wide range of applications.
The range of applications extends from narrow wires right up to cables with large outside diameters.
Buy currently uses Select Automation shop pricing and checkout.
Specifications dimensions and weights:
Depth: 4 mm.
Depth (inches): 0.157 inch.
Height: 3 mm.
Height (inches): 0.118 inch.
Width: 3.4 mm.
Width (inches): 0.134 inch.
Net weight: 1.4 g.
Temperatures:
Operating temperature range: -30 - 80 °C.
General data:
Colour: Yellow.
Colour of printing: Black.
Halogen: Yes.
Material: PVC, soft, without Cadmium.
Material colour according to resistance code: 4.
Number per mandrel: 25.
Operating temperature range: -30 - 80 °C.
Operating temperature range, max.: 80 °C.
Operating temperature range, min.: -30 °C.
Orientation of print: horizontal.
Printed characters: Upper-case letters.
Printing: Å.
Printing method: hot embossing.
Recommended industries: Process, Machinery.
Type of printing: Standard.
UL 94 flammability rating: V-0.
Version: Multipack.
Width: 3.4 mm.
Conductor and cable markers:
Conductor cross-section, max.: 1.5 mm².
Conductor cross-section, min.: 0.2 mm².
Conductor O.D.: 1.3 -3 mm.
Conductor O.D., max.: 3 mm.
Conductor O.D., min.: 1.3 mm.
Cross-section for connected wire: 0.2 - 1.5 mm².
Halogen: Yes.
