BOCHIOTTI PABLO IP65 08 GRI DB BOX
SKU: 06522
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:

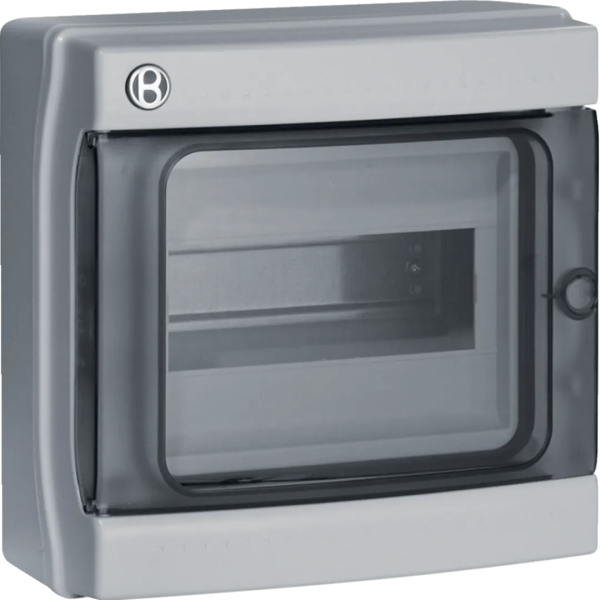

For outdoor wall installations, BOCHIOTTI PABLO IP65 08 GRI DB BOX 06522 is a robust and adaptable enclosure.
This enclosure, which is a member of the Pablo series, is renowned for its sturdy design and dependable operation.
Its construction, which combines tinted polycarbonate and ABS, guarantees its resilience to a range of climatic conditions.
Its IP65 classification means that it provides good defence against water and dust intrusion, which makes it appropriate for a variety of uses.
Up to eight modules can be included in the design, offering a safe and well-organized solution for electrical installations.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Product Code: 06522.
Manufacturer Code: IP65/08GRI.
Series: Pablo.
Material: ABS (Halogen Free) and Tinted Polycarbonate (Halogen Free).
External Dimensions:
Height: 210 mm.
Width: 215 mm.
Depth: 105 mm.
IP Rating: IP65.
Number of Modules: 8.
Mounting Style: Wall Mounting.
Colour: Grey RAL 7035.
Standards:
EN 60670-1: General requirements for boxes and enclosures for electrical accessories.
EN 60670-24: Requirements for enclosures for housing protective devices.
EN 62208: General requirements for empty enclosures for low-voltage switchgear and control gear assemblies.
Resistance:
Resistant to saline agents, UV radiation, and various chemicals.
Rated voltage up to 1000 V AC / 1500 V DC.
Power Dissipation: 19 W.
Impact Resistance: IK09.
Protection Class: Insulation class II.
Glow Wire Test: 960 °C.
This enclosure is an excellent choice for ensuring the safety and organization of electrical components in demanding environments.
