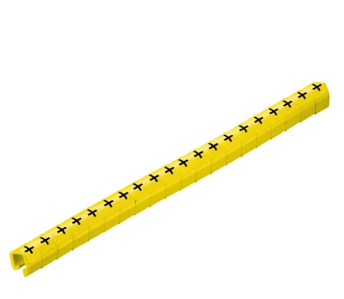

CLI O 20-3 GE NE MP
SKU: 0689700000
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
CLI O 20-3 GE NE MP:
Since CLI O conductor markers are installed on linked conductors, they can be used to update systems that already exist.
Three sizes are suitable for identifying conductor cross-sections ranging from 0.4 mm² to 4.0 mm².
The individually combinable markers are guaranteed to be attached securely and permanently by the form and design.
Benefits:
Open markers indicate connected wires.
Marker version with anti-rotation feature for secure combination marking.
Ideal for additional labelling of any kind.
incredibly little room needed.
Time is saved by quick clip-on attachment.
Buy currently uses Select Automation shop pricing and checkout.
Dimensions and weights:
Depth: 5 mm.
Depth (inches): 0.197 inch.
Height: 3 mm.
Height (inches): 0.118 inch.
Width: 5.5 mm.
Width (inches): 0.217 inch.
Net weight: 0.04 g.
Temperatures:
Operating temperature range: -30...80 °C.
Environmental Product Compliance:
REACH SVHC: /.
General data:
Colour: yellow.
Halogen: Yes.
Material: PVC, soft, without Cadmium.
Material colour according to resistance code: 4.
Operating temperature range: -30...80 °C.
Operating temperature range, max.: 80 °C.
Operating temperature range, min.: -30 °C.
Printed characters: without.
Printing: Blank.
Recommended industries: Process, Machinery.
Type of printing: neutral.
UL 94 flammability rating: V-0.
Version: MultiPack.
Width: 5.5 mm.
Conductor and cable markers:
Conductor cross-section, max.: 3 mm².
Conductor cross-section, min.: 1.5 mm².
Conductor O.D.: 3 - 4 mm.
Conductor O.D., max.: 4 mm.
Conductor O.D., min.: 3 mm.
Cross-section for connected wire: 1.5 – 3 mm².
Halogen: Yes.
