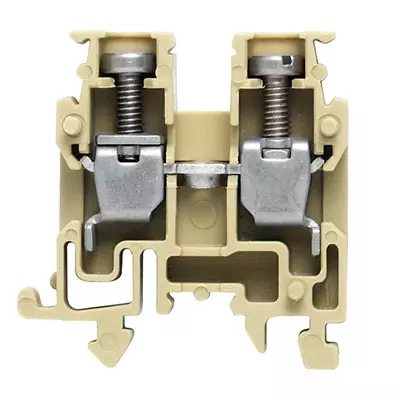

AKZ 2.5
SKU: 0697160000
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Pricing available on request
Feed-through Terminal Block:
Power, signal, and data transmission are standard needs in electrical engineering and panel building.
The insulating substance, connection system, and terminal block design are key distinguishing elements.
A feed-through terminal block can join and connect many conductors.
They may have many connection levels with the same potential or be insulated from each other.
Weights and dimensions:
Depth: 26.3 mm.
Depth including DIN rail: 27.1 mm.
Height: 25.5 mm.
Width: 5.1 mm.
Net weight: 3.439 g.
Temperatures:
Storage temperature: -25 °C - 55 °C.
Operating temperature range: For operating temperature range see EC Design Test Certificate / IEC Ex-Certificate of Conformity.
Continuous operating temp, min: -60 °C.
Continuous operating temp, max: 130 °C.
Material data:
Material: PA 66.
Colour: beige / yellow.
UL 94 flammability rating: V-0.
Buy currently uses Select Automation shop pricing and checkout.
Specifications rating data IECEx/AREX:
Certificate No. (ATEX): TUEV18ATEX8221U.
Certificate No. (IECEX): IECEXTUR18.0024U.
Max. voltage (ATEX): 220 V.
Current (ATEX): 24 A.
Wire cross section max. (ATEX): 4 mm².
Max. voltage (IECEX): 220 V.
Current (IECEX): 24 A.
Wire cross section max. (IECEX): 4 mm².
Operating temperature range: For operating temperature range see EC Design Test Certificate / IEC Ex-Certificate of Conformity.
Marking EN 60079-7: Ex eb II C Gb.
Ex 2014/34/EU label: II 2 G D.
System specifications:
Version: Screw connection, With assembly peg, for screwable cross-connection, One end without connector.
End cover plate required: Yes.
Number of potentials: 1.
Number of levels: 1.
Number of clamping points per level: 2.
Number of potentials per tier: 1.
Levels cross-connected internally: No.
PE connection: No.
Rail: TS 15.
N-function: No.
PE function: No.
PEN function: No.
Additional technical data:
Explosion-tested version: Yes.
Number of similar terminals: 1.
Open sides: right.
Type of mounting: Snap-on.
CSA rating data:>
Certificate No. (CSA): 200039-2124451.
Current size C (CSA): 10 A.
Voltage size C (CSA): 300 V.
Wire cross section max. (CSA): 10 AWG.
Wire cross section min. (CSA): 26 AWG.
Conductors for clamping (additional connection):
Connection type, additional connection: Screw connection.
Conductors for clamping (rated connection):
Blade size: 0.5 x 3.0 mm.
Clamping range, max: 4 mm².
Clamping range, min: 0.13 mm².
Clamping screw: M 2.5.
Connection cross-section, stranded, max: 2.5 mm².
Connection cross-section, stranded, min: 1.5 mm².
Connection direction: on side.
Gauge to IEC 60947-1: A3.
Number of connections: 2.
Stripping length: 7 mm.
Tightening torque, max: 0.6 Nm.
Tightening torque, min: 0.4 Nm.
Torque level with DMS electric screwdriver: 1.
Twin wire-end ferrules, max: 1.5 mm².
Twin wire-end ferrules, min: 0.5 mm².
Type of connection: Screw connection.
Wire connection cross section AWG, max: AWG 12.
Wire connection cross section AWG, min: AWG 26.
Wire connection cross section, finely stranded, max: 2.5 mm².
Wire connection cross section, finely stranded, min: 0.5 mm².
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, max: 2.5 mm².
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, min: 0.5 mm².
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max: 2.5 mm².
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min: 0.5 mm².
Wire connection cross-section, solid core, max: 4 mm².
Wire connection cross-section, solid core, min: 0.5 mm².
Dimensions:
TS 15 offset: 11.25 mm.
General:
Number of poles: 1.
Rail: TS 15.
Standards: IEC 60947-7-1.
Wire connection cross section AWG, max: AWG 12.
Wire connection cross section AWG, min: AWG 26.
Rating data:
Rated cross-section: 2.5 mm².
Rated voltage: 250 V.
Rated DC voltage: 250 V.
Rated current: 24 A.
Current at maximum wires: 32 A.
Standards: IEC 60947-7-1.
Volume resistance according to IEC 60947-7-x: 1.33 mΩ.
Rated impulse withstand voltage: 4 kV.
Power loss in accordance with IEC 60947-7-x: 0.77 W.
Pollution severity: 3.
UL rating data:
Certificate No. (UR): E60693.
Conductor size Factory wiring max. (UR): 12 AWG.
Conductor size Factory wiring min. (UR): 26 AWG.
Conductor size Field wiring max. (UR): 12 AWG.
Conductor size Field wiring min. (UR): 22 AWG.
Current size B (UR): 10 A.
Current size D (UR): 10 A.
Voltage size B (UR): 300 V.
Voltage size D (UR): 300 V.
