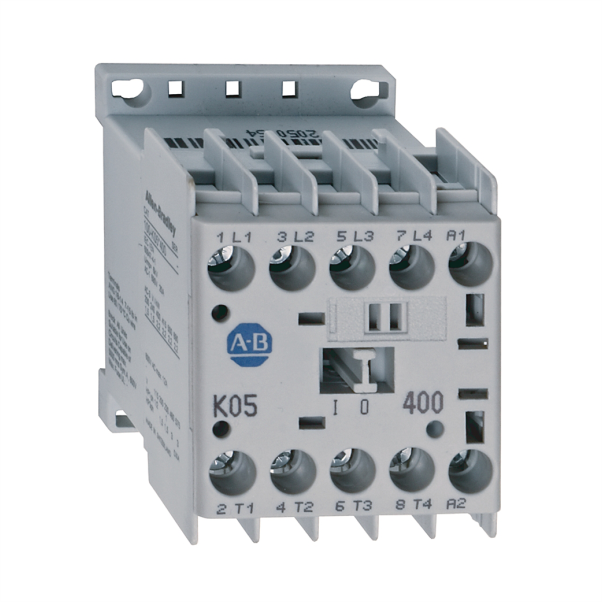

IEC 5 A Miniature Contactor 5A, 110V 50Hz/120V 60Hz, 3 N.O. Main, 1 N.O. Auxiliary
SKU: 100-K05D10M
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Features:
Mini contactors.
Uniform panel mounting dimensions.
Panel mounting or mounting on 35 mm DIN Rail.
Made of environmentally friendly materials.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Auxiliary Contact Configuration: 1 N.O. / 3 N.C. Poles.
Terminal Type: Screw Type Terminal.
Mechanical:
Number of normally open contactors as main contact: 3.
Number of auxiliary contacts as normally open contact: 1.
Electrical:
Voltage Type for actuating: AC.
Rated Control Supply Voltage at AC 50Hz: 110V.
Rated Control Supply Voltage at AC 60Hz: 120V.
Rated Control Supply Voltage at DC: 0V.
Type of electrical connection of main circuit: Screw Connection.
Optional Overload Relays: Bimetallic.
Main Current Circuit Resistance: 2.2mΩ.
Auxiliary Contact Configuration: 1 NO.
Environmental:
Ambient Temperature: Storage: -55° to 80°C (-67° to 176°F).
