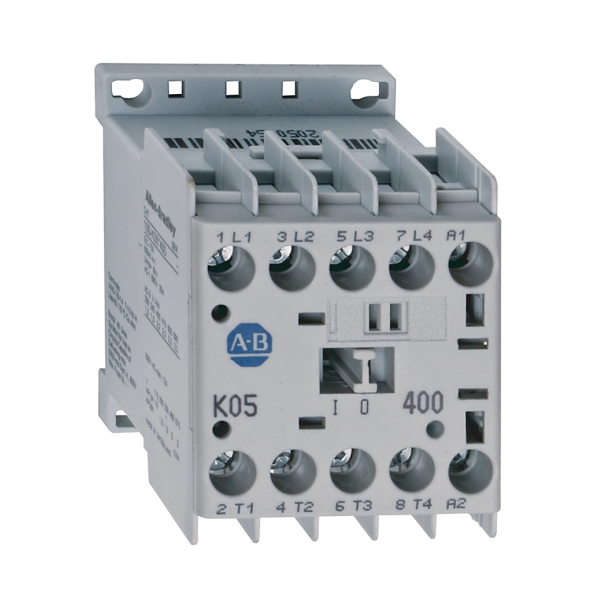

IEC 5 A Miniature Contactor 5A, 24 (17...30)V DC Diode, 3 N.O. Main, 1 N.C. Auxiliary
SKU: 100-K05DJ01M
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Features:
Mini contactors.
Uniform panel mounting dimensions.
Panel mounting or mounting on 35 mm DIN Rail.
Made of environmentally friendly materials.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Auxiliary Contact Configuration: 1 N.C., 3 N.O. Poles.
Contactor Size: 5A.
Terminal Type: Screw Type Terminals.
Mechanical:
Number of normally open contacts as main contacts: 3.
Number of auxiliary contacts as normally closed contact: 1.
Electrical:
Voltage type for actuating: DC.
Type of electrical connection of main circuit: Screw connection.
Optional overload relays: Bimetallic.
Main current circuit resistance: 2.2mΩ.
Auxiliary contact configuration: 1NC.
Environmental:
Ambient temperature: Storage: -55° to 80°C (-67° to 176°F).
