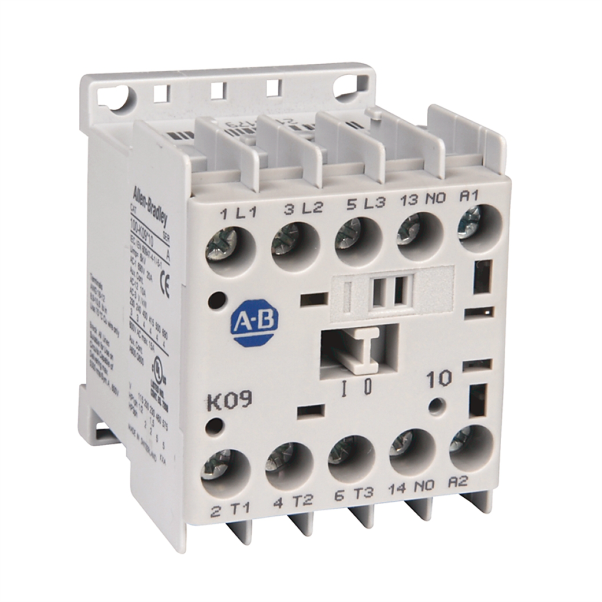

IEC 9 A Miniature Contactor Screw Type Terminals, 9A, 240V 50/60Hz, 4 N.O.
SKU: 100-K09KA400
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Features:
Mini contactors.
Uniform panel mounting dimensions.
Panel mounting or mounting on 35 mm DIN Rail.
Made of environmentally friendly materials.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Auxiliary Contact Configuration: None, 4 N.O Poles.
Contactor Size: 9A.
Terminal Type: Screw Terminals.
No of poles: 4 Poles.
Quantity: 1.
Mechanical:
Number of Normally open contacts as main contacts: 4.
Protection Class: IP2X.
Electrical:
Voltage Type for actuating: AC.
Rated control supply voltage at AC 50Hz: 240V.
Rated control supply voltage at AC 60Hz: 240V.
Rated control supply voltage at DC: 0V.
Type of electrical connection of main circuit: Screw connection.
Main current resistance: 2.2mΩ.
Power dissipation (all circuits): 0.9W at 400V, AC – 3.
Auxiliary contact configuration: No auxiliary contact.
