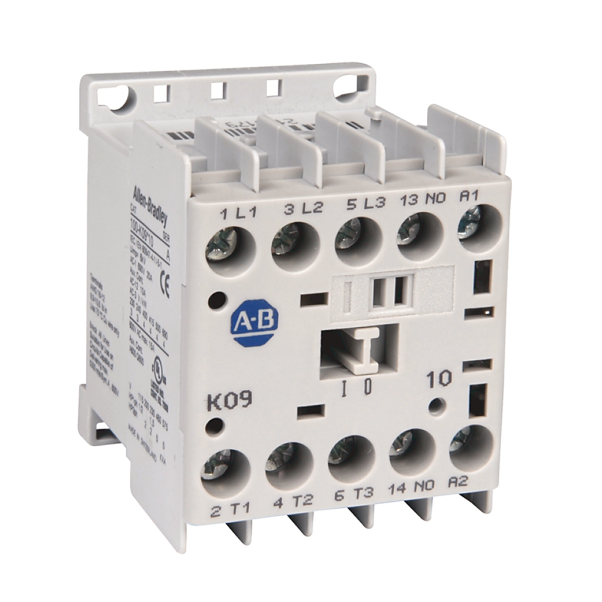

IEC 9 A Miniature Contactor 9A, 200...220V 50/60Hz, 3 N.O. Main, 1 N.O. Auxiliary
SKU: 100-K09KG10
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Features:
Mini contactors.
Uniform panel mounting dimensions.
Panel mounting or mounting on 35 mm DIN Rail.
Made of environmentally friendly materials.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Contactor Size: 9A.
Mechanical:
Number of normally open contacts as main contact: 3.
Number of auxiliary contacts as normally open contact: 1.
Electrical:
Voltage type for actuating: AC.
Rated control supply voltage at AC 50Hz: 200V.
Rated control supply voltage at AC 60Hz: 208V.
Rated control supply voltage at DC: 0V.
Type of electrical connection of main circuit: Screw connection.
Optional overload relays: Bimetallic.
Main current circuit resistance: 2.2mΩ.
Auxiliary contact configuration: 1NO.
Environmental:
Ambient temperature: Storage: -55° to 80°C (-67° to 176°F).
