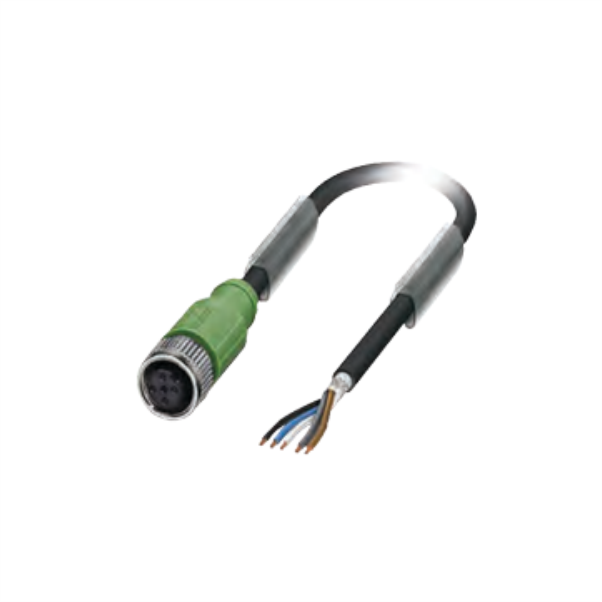

10m PUR Cable with M12 5pin A-Coded female connector mounted
SKU: 10017031-10m
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Pricing available on request
Description:
For demanding industrial applications, the POSITAL FRABA 10m PUR Cable with M12 5-pin A-Coded female connector (model 10017031-10m) is made to provide sturdy and dependable connectivity for sensors and actuators.
Because of its exceptional resistance to abrasion, oils, and chemicals, the cable's PUR (polyurethane) outer wrapping makes it appropriate for demanding situations.
A strong and long-lasting connection is ensured by the M12 5-pin A-Coded female connector's robust mounting.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Cable Length: 10 meters.
Connector Type: M12, 5-pin, A-Coded, female.
Outer Sheath Material: PUR (Polyurethane).
Outer Sheath Colour: Black, grey (RAL 7021).
Shielding: Braided.
Conductor Insulation: PP (Polypropylene).
Conductor Cross Section: 5 x 0.34 mm².
Number of Leads: 5.
AWG Signal Line: AWG 22.
External Cable Diameter: 5.9 mm ± 0.2 mm.
Smallest Bending Radius (Fixed Installation): 29.5 mm.
Smallest Bending Radius (Movable Installation): 59 mm.
Degree of Protection: IP67.
Operating Temperature Range: -25°C to 80°C.
Insulation Resistance: ≥ 70 GΩ*km.
Conductor Resistance: ≤ 57 Ω/km.
Weight: 450 g.
