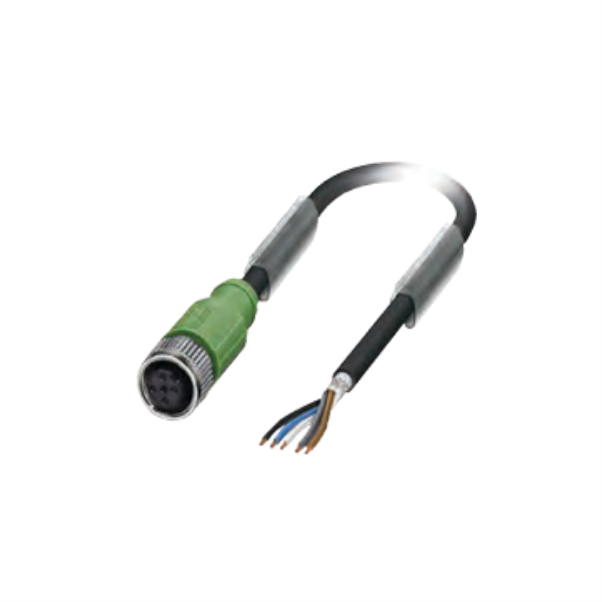

5m PUR Cable with M12 5pin A-Coded female connector mounted
SKU: 10017218-5m
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Pricing available on request
Description:
For dependable connectivity for sensors and actuators, the POSITAL FRABA 5m PUR Cable with M12 5-pin A-Coded female connector (model 10017218-5m) is made for heavy-duty industrial applications.
Because of its exceptional resistance to abrasion, oils, and chemicals, the cable's PUR (polyurethane) outer sheath makes it appropriate for demanding settings.
A strong and long-lasting connection is ensured by the firmly installed M12 5-pin A-Coded female connector.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Cable Length: 5 meters.
Connector Type: M12, 5-pin, A-Coded, female.
Outer Sheath Material: PUR (Polyurethane).
Outer Sheath Colour: Black, grey (RAL 7021).
Shielding: Braided.
Conductor Insulation: PP (Polypropylene).
Conductor Cross Section: 5 x 0.34 mm².
Number of Leads: 5.
AWG Signal Line: AWG 22.
External Cable Diameter: 5.9 mm ± 0.2 mm.
Smallest Bending Radius (Fixed Installation): 29.5 mm.
Smallest Bending Radius (Movable Installation): 59 mm.
Degree of Protection: IP67.
Operating Temperature Range: -25°C to 80°C.
Insulation Resistance: ≥ 70 GΩ*km.
Conductor Resistance: ≤ 57 Ω/km.
Weight: 270 g.
