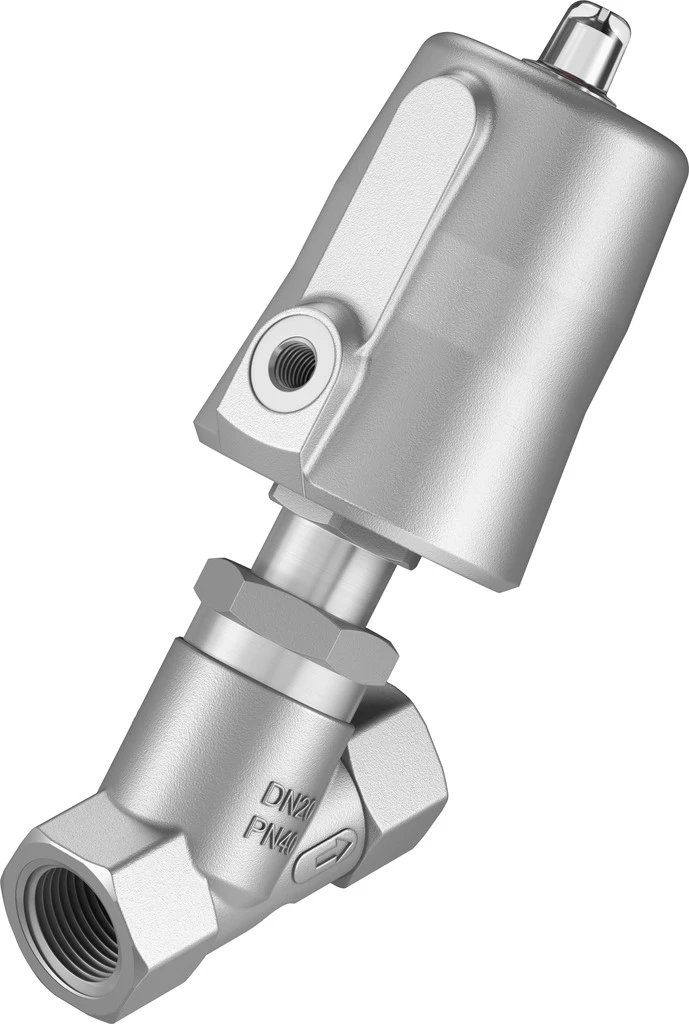

Angle seat valve, VZXF-L-M22C-M-B-G34-180-M1-V4V4T-50-20
SKU: 1002515
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Specifications
• Angle seat valves VZXF
• Line connection Threaded coupling G3/4 to DIN ISO 228
• Flow rate Kv 6.5 m³/h
• Medium pressure 0 bar - 20 bar
• Nominal size 18 mm
• Design Poppet valve with piston drive
• Type of actuation Pneumatic
• Sealing principle Soft
• Mounting position optional
• Type of mounting In-line installation
• Valve function 2/2-way, closed, monostable
• Flow direction Non-reversible
Buy currently uses Select Automation shop pricing and checkout.
Angle seat valves VZXF
• Angle seat valves made of gunmetal (red brass) and stainless steel, fully assembled and directly actuated by compressed air supply
• Suitable for use with lightly contaminated media
• Can be used for steam applications
• Direct pilot air supply
• Selected types in accordance with ATEX directive for potentially explosive atmospheres
