KLIPPON STB 3 SS
SKU: 1002720000
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Pricing available on request
Description:

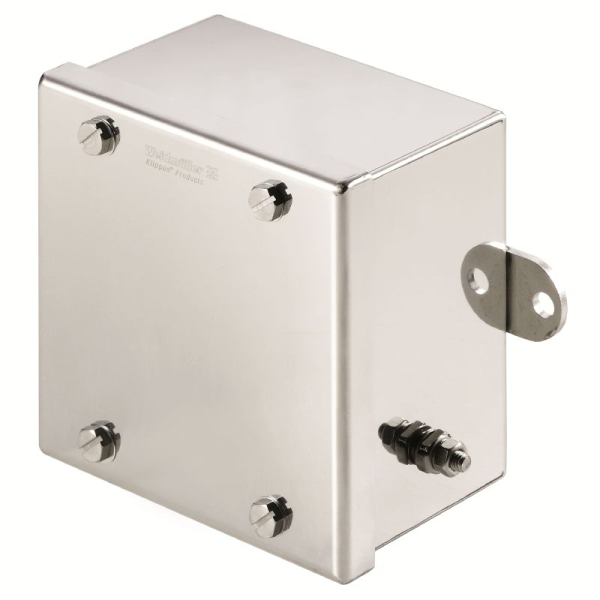

Compact and strong, the Weidmüller Klippon® STB 3 SS stainless steel enclosure is perfect for use in settings requiring strong protection.
The Klippon® STB line, which includes this compact terminal box, is renowned for its dependable performance and premium build quality.
The enclosure has a mirror-polished surface and is constructed of stainless steel 1.4404 (316L), which offers superior resistance to corrosion and environmental elements.
It is appropriate for a variety of industrial applications, such as explosive danger zones, packaging, transportation, process industries, and marine engineering, because it is made to safely house electrical and electronic components.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Item Number: 1002720000.
Material: Stainless steel 1.4404 (316L), mirror polished.
Colour: Silver.
Dimensions:
Height: 190 mm (7.48 inches).
Width: 190 mm (7.48 inches).
Depth: 100 mm (3.937 inches).
Net Weight: 2,433 g.
Protection Class: IP66.
Temperature Range:
Maximum: 100°C.
Minimum: -60°C.
Mounting Feet: Welded-on mounting foot with 8 mm holes.
Lid Attachment: M5 hexagonal screws with slot and 10 mm distance across flats.
Seal Material: Silicone.
Impact Resistance: 10 J (standard), 7 J (ATEX version).
Certifications:
ATEX.
DNV.
IECEx.
INMETRO.
LR.
RMRS.
UL AEx Class Div.
UL AEx Class Zone.
cULus.
KC.
CCC.
