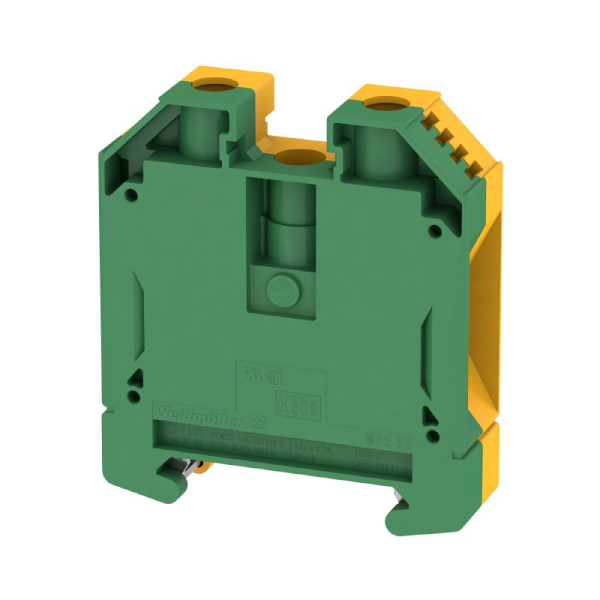

WPE 35

Specifications dimensions and weights: Depth: 62.5 mm. Depth (inches): 2.461 inch. Depth including DIN rail: 63 mm. Height: 56 mm. Height (inches): 2.205 inch. Width: 16 mm. Width (inches): 0.63 inch. Net weight: 77.2 g. Temperatures: Storage temperature: -25 °C - 55 °C. Operating temperature range: For operating temperature range see EC Design Test Certificate / IEC Ex-Certificate of Conformity. Continuous operating temp., min.: -60 °C. Continuous operating temp., max.: 130 °C. Environmental Product Compliance: REACH SVHC: /. Material data: Material: Wemid. Colour: Green/yellow. UL 94 flammability rating: V-0. Rating data IECEx/ATEX: Certificate No. (ATEX): DEMKO14ATEX1338U. Certificate No. (IECEX): IECEXULD14.0005U. Wire cross section max. (ATEX): 35 mm². Wire cross section max. (IECEX): 35 mm². Operating temperature range: For operating temperature range see EC Design Test Certificate / IEC Ex-Certificate of Conformity. Marking EN 60079-7: Ex eb II C Gb. Ex 2014/34/EU label: II 2 G D. System specifications: Version: Screw connection, With PE connection, in closed state. End cover plate required: No. Number of potentials: 1. Number of levels: 1. Number of clamping points per level: 2. Number of potentials per tier: 1. Levels cross-connected internally: No. PE connection: Yes. Rail: TS 35. N-function: No. PE function: Yes. PEN function: Yes. Additional technical data: Explosion-tested version: Yes. Installation advice: when screwed in. Interlock: for screw fixing. Number of similar terminals: 1. Open sides: closed. Type of mounting: when screwed in. Conductors for clamping (additional connection): Connection type, additional connection: Screw connection. Conductors for clamping (rated connection): Blade size: 6.5 x 1.2 mm. Clamping range, max.: 35 mm². Clamping range, min.: 2.5 mm². Clamping screw: M 6. Connection cross-section, stranded, max.: 50 mm². Connection cross-section, stranded, min.: 2.5 mm². Connection direction: on side. Gauge to IEC 60947-1: B8. Number of connections: 2. Stripping length: 18 mm. Tightening torque, max.: 5 Nm. Tightening torque, min.: 4 Nm. Type of connection: Screw connection. Wire connection cross section AWG, max.: AWG 2. Wire connection cross section AWG, min.: AWG 12. Wire connection cross section, finely stranded, max.: 35 mm². Wire connection cross section, finely stranded, min.: 2.5 mm². Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, max.: 35 mm². Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, min.: 2.5 mm². Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max.: 35 mm². Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min.: 2.5 mm². Wire connection cross-section, solid core, max.: 50 mm². Wire connection cross-section, solid core, min.: 2.5 mm². CSA rating data: Certificate No. (CSA): 200039-1057876. Wire cross section max. (CSA): 2 AWG. Wire cross section min. (CSA): 12 AWG. Dimensions: TS 35 offset: 32 mm. General: Installation advice: when screwed in. Rail: TS 35. Standards: IEC 60947-7-2. Wire connection cross section AWG, max.: AWG 2. Wire connection cross section AWG, min.: AWG 12. PE rating data: Rated short-time current: 4200 A (35 mm²). Centre screw on PE terminals: M 4. Tightening torque range for fixing screw: 1.2 - 2.4 Nm. PEN function: Yes. Rating data: Rated cross-section: 35 mm². Rated voltage to adjoining terminal: 800 V. Rated DC voltage: 800 V. Standards: IEC 60947-7-2. Volume resistance according to IEC 60947-7-x: 0.26 mΩ. Rated impulse withstand voltage to adjacent terminal: 8 kV. Power loss in accordance with IEC 60947-7-x: 4 W. Pollution severity: 3. UL rating data: Certificate No. (UR): E60693. Conductor size Factory wiring max. (UR): 2 AWG. Conductor size Factory wiring min. (UR): 12 AWG. Conductor size Field wiring max. (UR): 2 AWG. Conductor size Field wiring min. (UR): 12 AWG.
