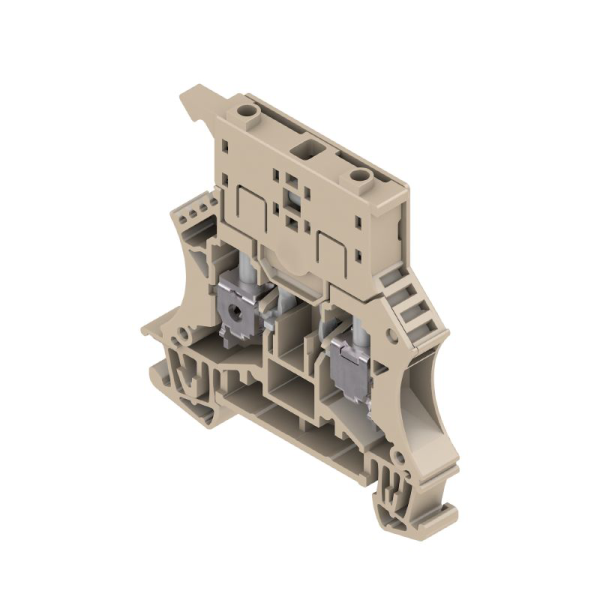

WSI 6:
In some cases, it is advantageous to protect the feed-through connection with a separate fuse.
Fuse terminal blocks consist of one bottom piece with a fuse insertion carrier.
Fuse types include pivoting levers, pluggable holds, screwable closures, and flat plug-in fuses.
Dimensions and weights:
Depth: 61 mm.
Depth (inches): 2.402 inch.
Depth including DIN rail: 62 mm.
Height: 60 mm.
Height (inches): 2.362 inch.
Width: 7.9 mm.
Width (inches): 0.311 inch.
Net weight: 18.36 g.
Buy currently uses Select Automation shop pricing and checkout.
Specifications temperatures:
Storage temperature: -25 °C - 55 °C.
Continuous operating temp., min.: -50 °C.
Continuous operating temp., max.: 120 °C.
Environmental Product Compliance:
REACH SVHC: /.
Material data:
Material: Wemid.
Colour: dark beige.
UL 94 flammability rating: V-0.
System specifications:
Version: Screw connection, Fuse isolator, for screwable cross-connection, One end without connector.
End cover plate required: Yes.
Number of potentials: 1.
Number of levels: 1.
Number of clamping points per level: 2.
Number of potentials per tier: 1.
Levels cross-connected internally: No.
PE connection: No.
Rail: TS 35.
N-function: No.
PE function: No.
PEN function: No.
2 clampable conductors (H05V/H07V) with equal cross-section (rated connection):
Wire connection cross section, finely stranded with wire-end ferrules DIN 46228/1, 2 clampable wires, max.: 2.5 mm².
Wire connection cross section, finely stranded with wire-end ferrules DIN 46228/1, 2 clampable wires, min.: 0.5 mm².
Wire connection cross section, finely stranded, two clampable wires, min.: 0.5 mm².
Wire cross-section, finely stranded, two clampable wires, max.: 2.5 mm².
Additional technical data:
Explosion-tested version: No.
Number of similar terminals: 1.
Open sides: right.
Type of mounting: Snap-on.
Conductors for clamping (additional connection):
Conductor cross-section, flexible plus plastic collar DIN 46228/1, further connection, max.: 6 mm².
Connection type, additional connection: Screw connection.
Conductors for clamping (rated connection):
Blade size: 0.8 x 4.0 mm.
Clampable conductor:
Connection specification: Screw connection.
Cross-section for conductor connection:
Type: solid, H05(07) V-U.
min.: 0.5 mm².
max.: 10 mm².
nominal: 6 mm².
wire end ferrule:
Stripping length:
min.: 12 mm.
max.: 12 mm.
nominal: 12 mm.
Tightening torque:
min.: 0.8 Nm.
max.: 1.6 Nm.
Connection specification: Screw connection.
Cross-section for conductor connection:
Type: stranded, H07V-R.
min.: 1.5 mm²
max.: 10 mm².
nominal: 6 mm².
wire end ferrule:
Stripping length:
min.: 12 mm.
max.: 12 mm.
nominal: 12 mm.
Tightening torque:
min.: 0.8 Nm.
max.: 1.6 Nm.
Connection specification: Screw connection.
Cross-section for conductor connection:
Type: flexible, H05(07) V-K.
min.:0.5 mm².
max.:10 mm².
nominal:6 mm².
wire end ferrule:
Stripping length:
min.:12 mm.
max.:12 mm.
nominal:12 mm.
Tightening torque:
min.:0.8 Nm.
max.:1.6 Nm.
Clamping range, max.: 10 mm².
Clamping range, min.: 0.5 mm².
Clamping screw: M 3.5.
Connection cross-section, stranded, max.: 10 mm².
Connection cross-section, stranded, min.: 1.5 mm².
Connection direction: on side.
Gauge to IEC 60947-1: A5.
Number of connections: 2.
Stripping length: 12 mm.
Tightening torque, max.: 1.6 Nm.
Tightening torque, min.: 0.8 Nm.
Torque level with DMS electric screwdriver: 3.
Type of connection: Screw connection.
Type of connection 2: Screw connection.
Wire connection cross section AWG, max.: AWG 8.
Wire connection cross section AWG, min.: AWG 20.
Wire connection cross section, finely stranded, max.: 10 mm².
Wire connection cross section, finely stranded, min.: 0.5 mm².
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, max.: 6 mm².
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, min.: 0.5 mm².
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max.: 6 mm².
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min.: 0.5 mm².
Wire connection cross-section, solid core, max.: 10 mm².
Wire connection cross-section, solid core, min.: 0.5 mm².
CSA rating data:
Certificate No. (CSA): 200039-1057876.
Current size C (CSA): 10 A.
Voltage size C (CSA): 600 V.
Wire cross section max. (CSA): 8 AWG.
Wire cross section min. (CSA): 20 AWG.
Fuse terminals:
Cartridge fuse: G-Si. 5 x 20.
Display: Without LED.
Fuse holder (cartridge holder): Pivoting.
Operating voltage, max.: 250 V.
General:
Rail: TS 35.
Standards: IEC 60947-7-3, IEC 60947-7-1.
Wire connection cross section AWG, max.: AWG 8.
Wire connection cross section AWG, min.: AWG 20.
Rating data:
Rated cross-section: 6 mm².
Rated voltage: 500 V.
Rated voltage to adjoining terminal: 500 V.
Rated DC voltage: 500 V.
Rated current: 6.3 A.
Current at maximum wires: 6.3 A.
Standards: IEC 60947-7-3, IEC 60947-7-1.
Volume resistance according to IEC 60947-7-x: 0.78 mΩ.
Rated impulse withstand voltage: 6 kV.
Power loss in accordance with IEC 60947-7-x: 1.31 W.
Pollution severity: 3.
UL rating data:
Certificate No. (UR): E60693.
Conductor size Factory wiring max. (UR): 8 AWG.
Conductor size Factory wiring min. (UR): 22 AWG.
Conductor size Field wiring max. (UR): 8 AWG.
Conductor size Field wiring min. (UR): 22 AWG.
Current size C (UR): 9.5 A.
Voltage size C (UR): 600 V.
Important note:
Product information: The voltage depends on the selected fuse element or the selected indicator light.
