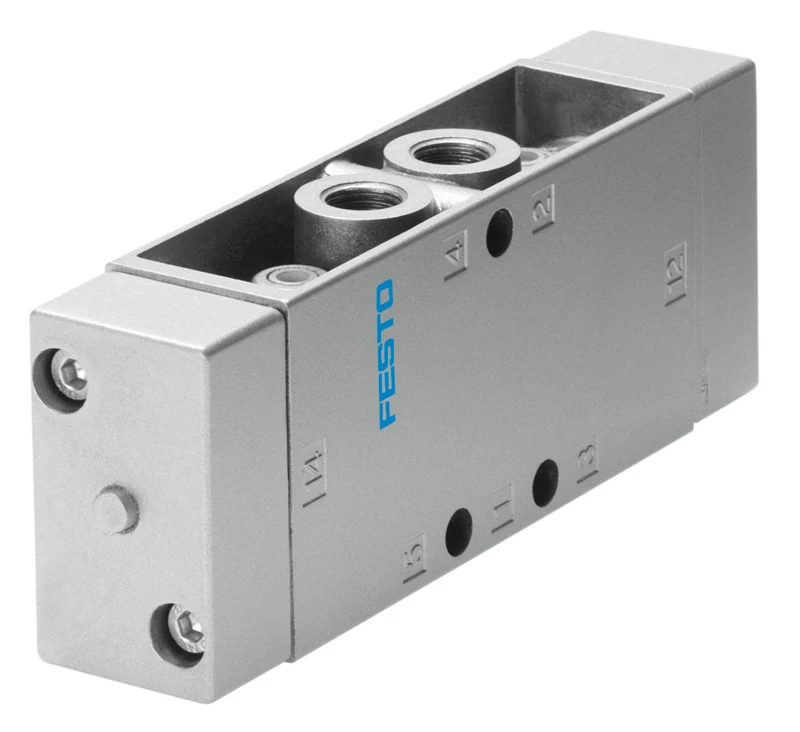

Pneumatic valve, JH-5-1/2
SKU: 10165
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Specifications
• Pneumatic valves JH, Tiger Classic
• Valve function 5/2 double solenoid
• Type of actuation Pneumatic
• Construction width 52 mm
• Standard nominal flow rate (standardised to DIN 1343) 4500 l/min
• Pneumatic working port G1/2
• Operating pressure 0 MPa ... 1 MPa
• Operating pressure 0 bar ... 10 bar
• Design Poppet seat
• Nominal size 14 mm
• Grid dimension 69 mm
• Exhaust-air function With flow control option
• Sealing principle Soft
• Mounting position optional
Buy currently uses Select Automation shop pricing and checkout.
Tiger Classic valve
• Sturdy and reliable
• Poppet valve
• All-metal version
• Principle with armature tube
• Variants to EU Explosion Protection Directive (ATEX)
