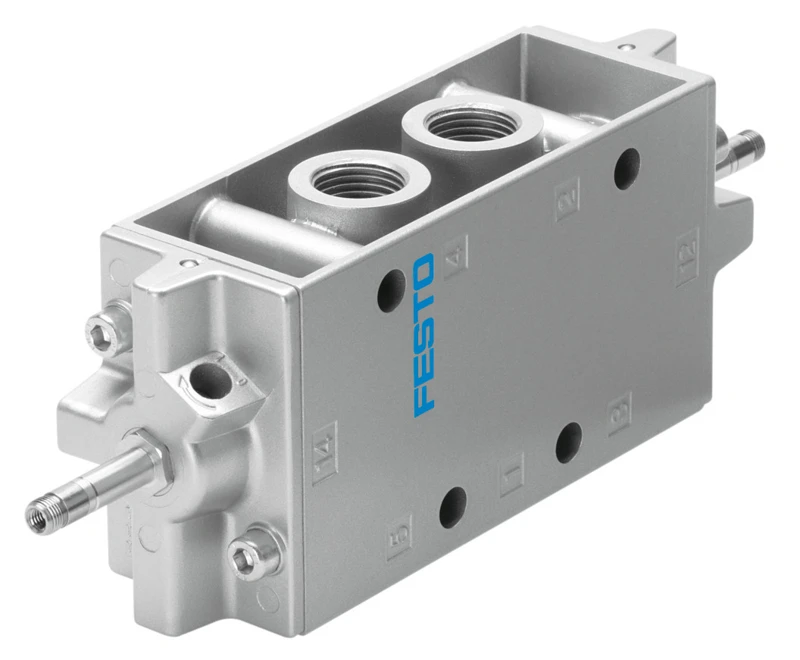

Solenoid valve, JMFH-5-1/2

Specifications • Solenoid valves JMFH, Tiger Classic • Valve function 5/2 double solenoid • Type of actuation Electric • Construction width 52 mm • Standard nominal flow rate (standardised to DIN 1343) 4500 l/min • Pneumatic working port G1/2 • Operating voltage Via solenoid coil, must be ordered separately • Operating pressure 0.2 MPa ... 0.8 MPa • Operating pressure 2 bar ... 8 bar • Design Poppet seat • Approval c UL us - Recognized (OL) • Degree of protection IP65 • Nominal size 14 mm • Grid dimension 69 mm • Exhaust-air function With flow control option • Sealing principle Soft • Mounting position optional
