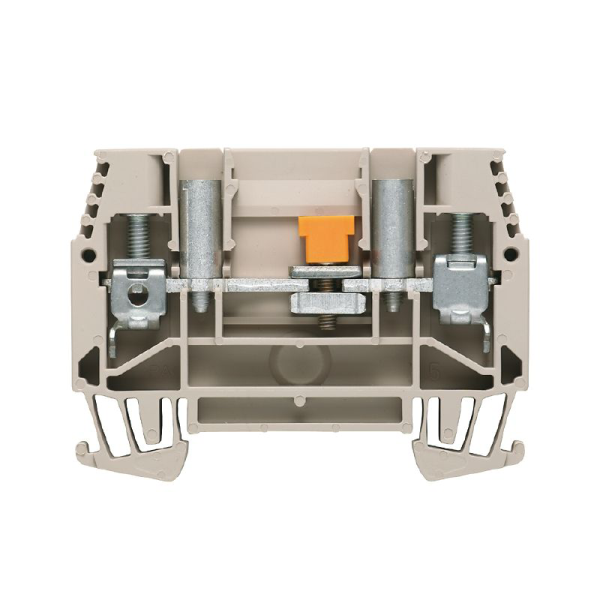

WTL 6/1/STB

Temperatures: Storage temperature: -25 °C - 55 °C. Continuous operating temp., min.: -50 °C. Continuous operating temp., max.: 120 °C. Environmental Product Compliance: REACH SVHC: Lead 7439-92-1. SCIP: 0eb7d846-d0a1-43e5-93a4-d7c6856c4cda. Material data: Material: Wemid. Colour: dark beige. UL 94 flammability rating: V-0. System specifications: Version: Screw connection, Spacer, With sockets, One end without connector. End cover plate required: Yes. Number of potentials: 1. Number of levels: 1. Number of clamping points per level: 2. Number of potentials per tier: 1. Levels cross-connected internally: No. PE connection: No. Rail: TS 35. N-function: No. PE function: No. PEN function: No. 2 clampable conductors (H05V/H07V) with equal cross-section (rated connection): Wire connection cross section, finely stranded with wire-end ferrules DIN 46228/1, 2 clampable wires, max.: 2.5 mm². Wire connection cross section, finely stranded with wire-end ferrules DIN 46228/1, 2 clampable wires, min.: 0.5 mm². Wire connection cross section, finely stranded, two clampable wires, min.: 0.5 mm². Wire cross-section, finely stranded, two clampable wires, max.: 2.5 mm². Additional technical data: Explosion-tested version: No. Number of similar terminals: 1. Open sides: right. Type of mounting: Snap-on. Conductors for clamping (rated connection): Blade size: 0.8 x 4.0 mm. Clamping range, max.: 10 mm². Clamping range, min.: 0.5 mm². Clamping screw: M 3.5. Connection cross-section, stranded, max.: 10 mm². Connection cross-section, stranded, min.: 1.5 mm². Connection direction: on side. Gauge to IEC 60947-1: A5. Number of connections: 2. Stripping length: 12 mm. Tightening torque, max.: 1.6 Nm. Tightening torque, min.: 1 Nm. Torque level with DMS electric screwdriver: 3. Type of connection: Screw connection. Wire connection cross section AWG, max.: AWG 8. Wire connection cross section AWG, min.: AWG 20. Wire connection cross section, finely stranded, max.: 10 mm². Wire connection cross section, finely stranded, min.: 0.5 mm². Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, max.: 6 mm². Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, min.: 0.5 mm². Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max.: 6 mm². Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min.: 0.5 mm². Wire connection cross-section, solid core, max.: 10 mm². Wire connection cross-section, solid core, min.: 0.5 mm². CSA rating data: Certificate No. (CSA): 200039-1057876. Current size C (CSA): 45 A. Voltage size C (CSA): 600 V. Wire cross section max. (CSA): 8 AWG. Wire cross section min. (CSA): 20 AWG. Dimensions: TS 35 offset: 30 mm. Disconnect terminals: Cross-disconnect: without. Integral test socket: Yes. Slitting: sliding. Torque max. screw separator: 0.7 Nm. Torque min. screw separator: 0.5 Nm. General: Rail: TS 35. Wire connection cross section AWG, max.: AWG 8. Wire connection cross section AWG, min.: AWG 20. Rating data: Rated cross-section: 6 mm². Rated voltage: 630 V. Rated DC voltage: 630 V. Rated current: 41 A. Current at maximum wires: 57 A. Volume resistance according to IEC 60947-7-x: 0.78 mΩ. Rated impulse withstand voltage: 6 kV. Power loss in accordance with IEC 60947-7-x: 1.31 W. Pollution severity: 3. UL rating data: Certificate No. (UR): E60693. Conductor size Factory wiring max. (UR): 8 AWG. Conductor size Factory wiring min. (UR): 20 AWG. Conductor size Field wiring max. (UR): 8 AWG. Conductor size Field wiring min. (UR): 20 AWG. Current size C (UR): 45 A. Voltage size C (UR): 300 V.
