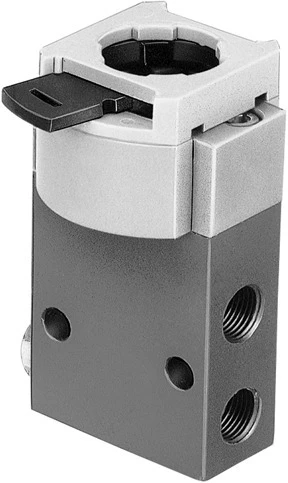

Front panel valve, SVS-3-1/8
SKU: 10190
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Specifications
• Front panel valves SV
• Valve function 3/2-way, closed, monostable
• Type of actuation Mechanical
• Standard nominal flow rate (standardised to DIN 1343) 120 l/min
• Pneumatic working port G1/8
• Operating pressure 0.35 MPa ... 0.8 MPa
• Operating pressure 3.5 bar ... 8 bar
• Design Piston seat
• Type of reset Mechanical spring
• Sealing principle Soft
• Mounting position optional
• Type of piloting Pilot actuated
• Flow direction Non-reversible
Buy currently uses Select Automation shop pricing and checkout.
Front panel valve G1/8 SVS, SVOS
• For actuator attachments such as pushbutton actuators, mushroom pushbuttons, selector switches, toggle switches, key actuators
• Reliable coupling system for quick mounting and dismounting
