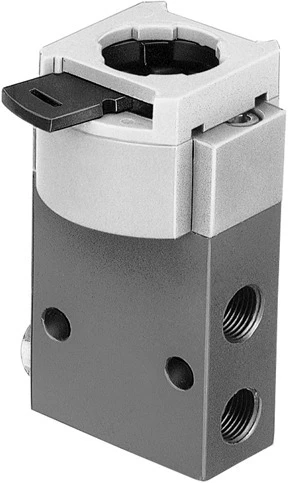

Front panel valve, SVOS-3-1/8

Specifications • Front panel valves SV • Valve function 3/2 open, single solenoid • Type of actuation Mechanical • Standard nominal flow rate (standardised to DIN 1343) 120 l/min • Pneumatic working port G1/8 • Operating pressure 0.35 MPa ... 0.8 MPa • Operating pressure 3.5 bar ... 8 bar • Design Piston seat • Type of reset Mechanical spring • Sealing principle Soft • Mounting position optional • Type of piloting Direct • Flow direction Non-reversible
